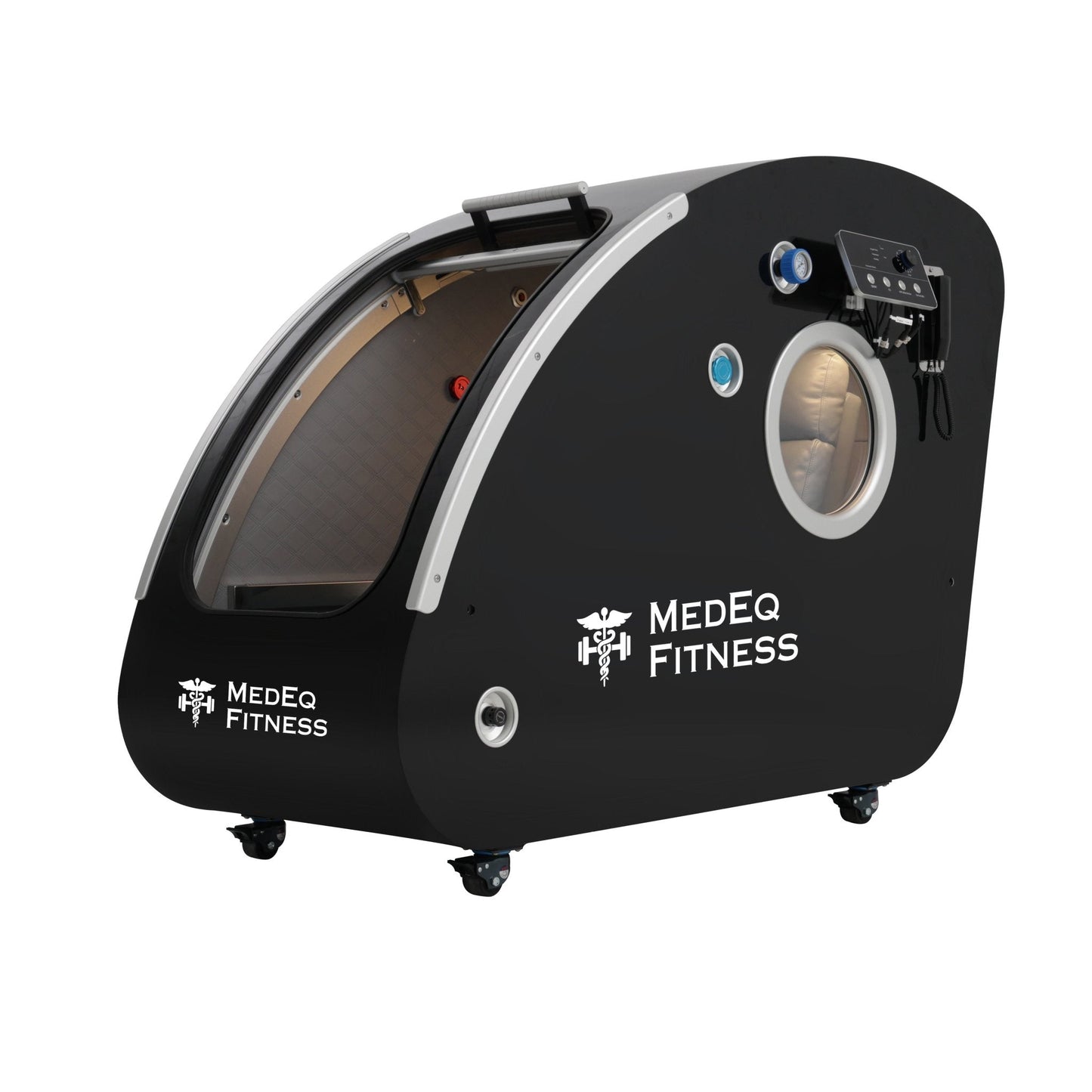

TimePod 2 – 2.0 ATA Triangular Hard-Shell Monoplace Hyperbaric Chamber
Product Description

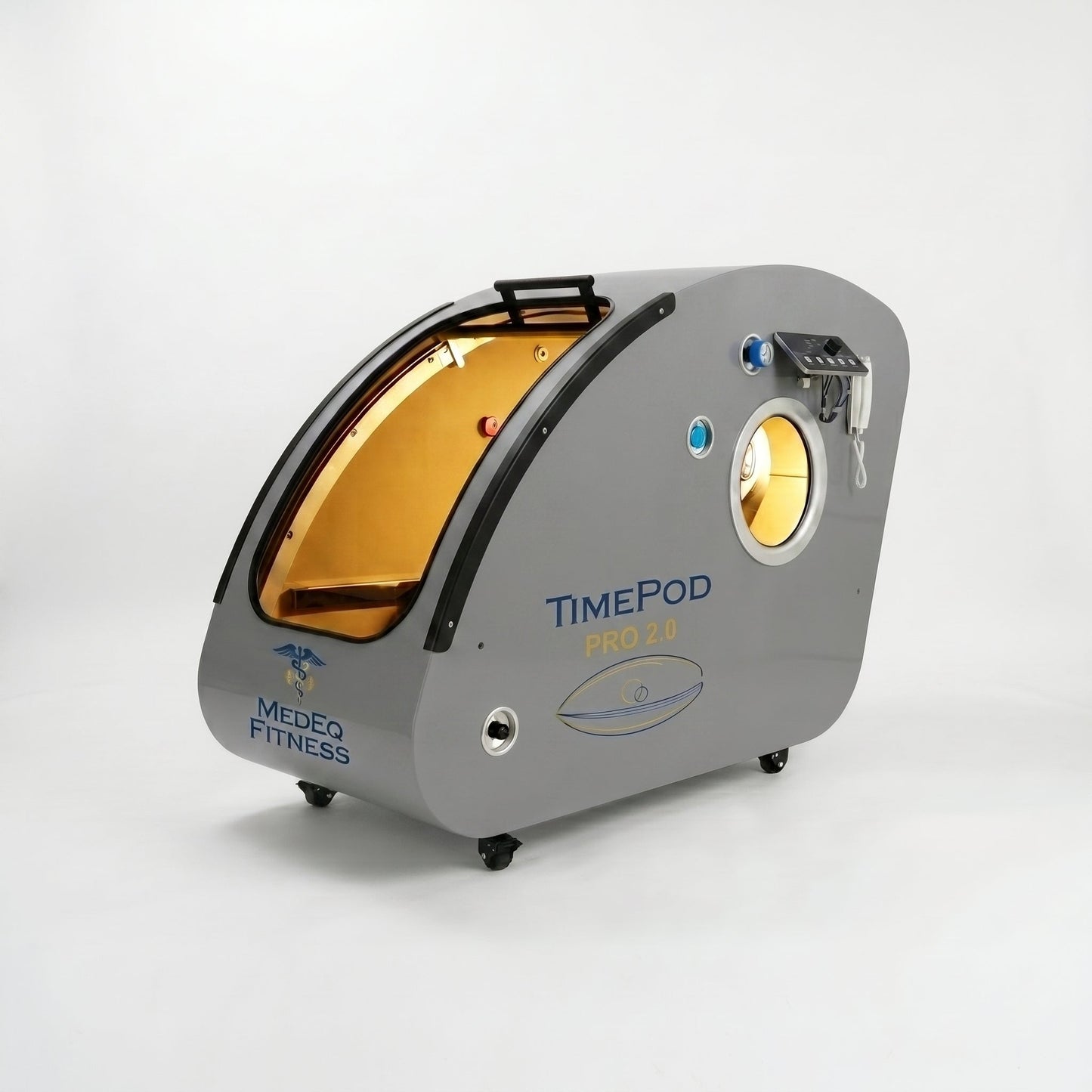

The TimePod 2 is a next-generation 2.0 ATA hard-shell monoplace hyperbaric chamber with a compact triangular "space-saving" design, selected for the Elevate catalog for its space-efficient footprint and clinic-grade construction. Built from a pressure-rated nickel-steel alloy shell with eco-friendly powder coating, TimePod 2 delivers high-performance hyperbaric therapy in a notably compact footprint.
Adjustable from 1.3 to 2.0 ATA, TimePod 2 pairs its hard-shell chamber with an integrated host unit combining high-flow oxygen, air management, and climate control into a single console. Optional upgrades — including a BIBS (Built-In Breathing System) and an internal red-light therapy panel — allow the platform to be configured into a more advanced recovery setup.
Key Features

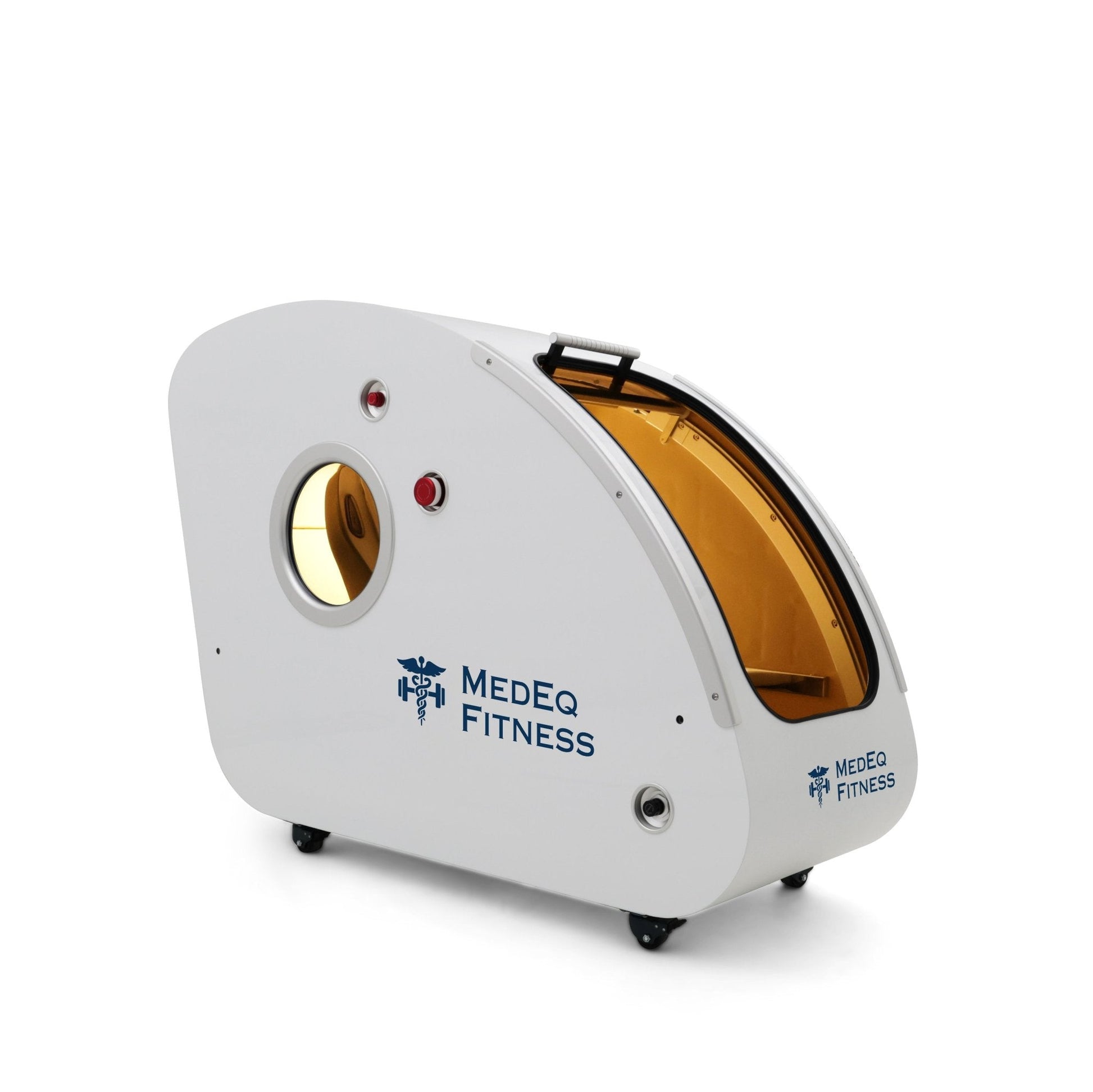

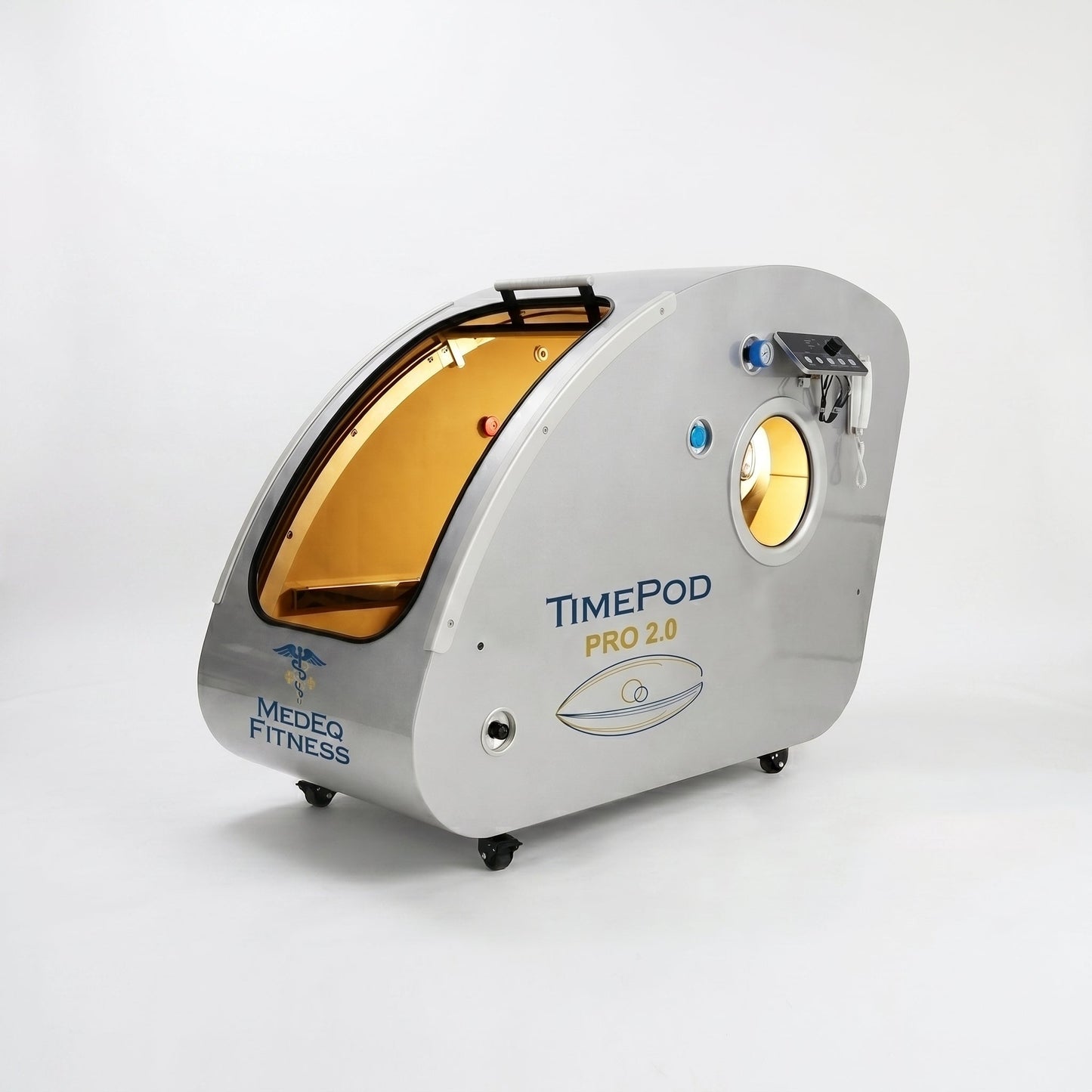

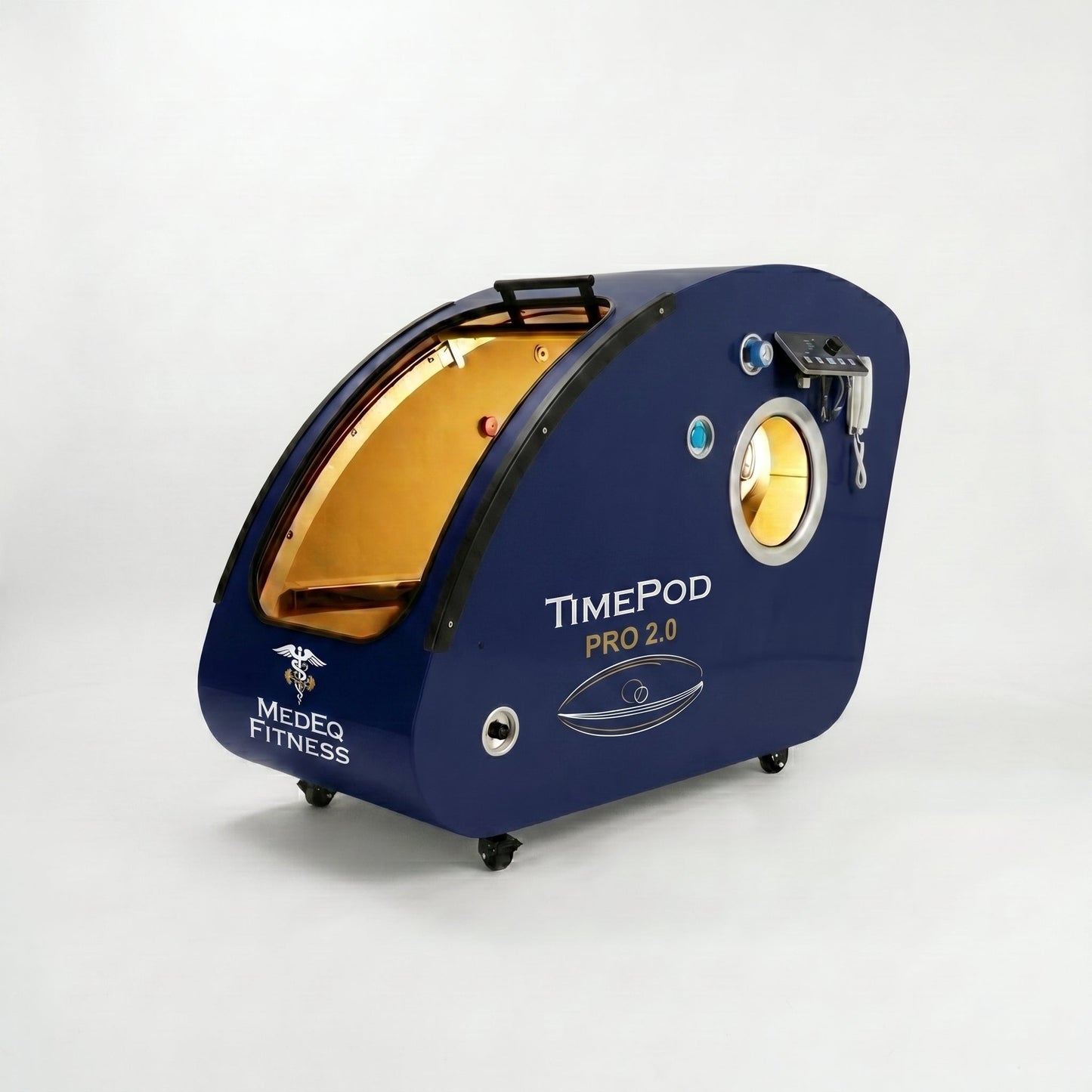

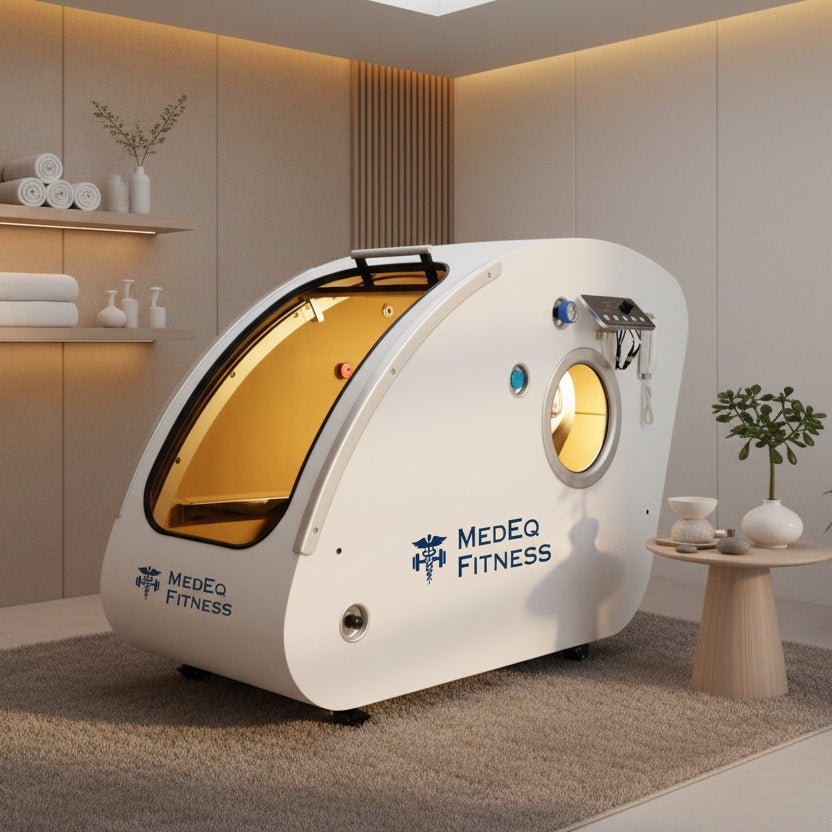

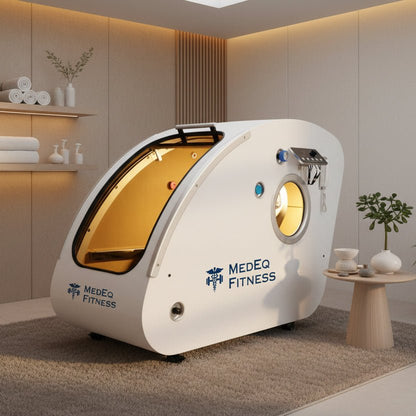

Triangular Hard-Shell "Space" Design
Triangular cabin design maximizes internal volume while minimizing floor space compared with traditional cylindrical chambers. Compact footprint allows for flexible placement in a variety of dedicated spaces. Newly modified sliding door entry for improved safety and operation.
2.0 ATA Adjustable Pressure (1.3–2.0 ATA)
Adjustable hard-shell range from 1.3 up to 2.0 ATA for flexible protocols, with working pressure configurations at 1.3, 1.5, 1.7, and 2.0 ATA (configuration dependent). Supports a range of pressure approaches within a single platform.
Nickel-Steel Alloy Pressure Shell
Corrosion-resistant nickel-steel construction engineered for repeated 2.0 ATA use. Eco-friendly powder-coated surface designed to minimize off-gassing. Multi-layer safety architecture with reinforced seams and hardware.

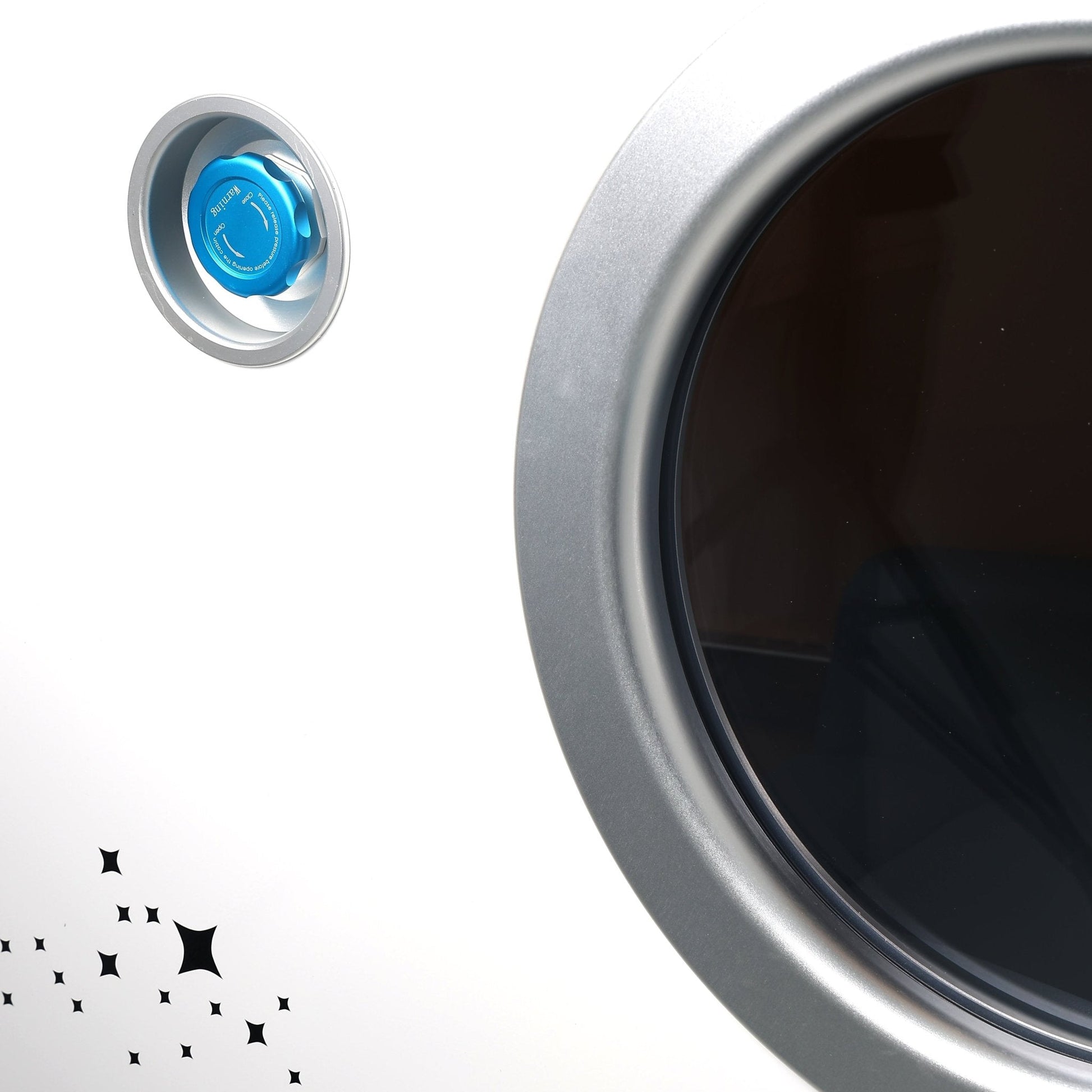

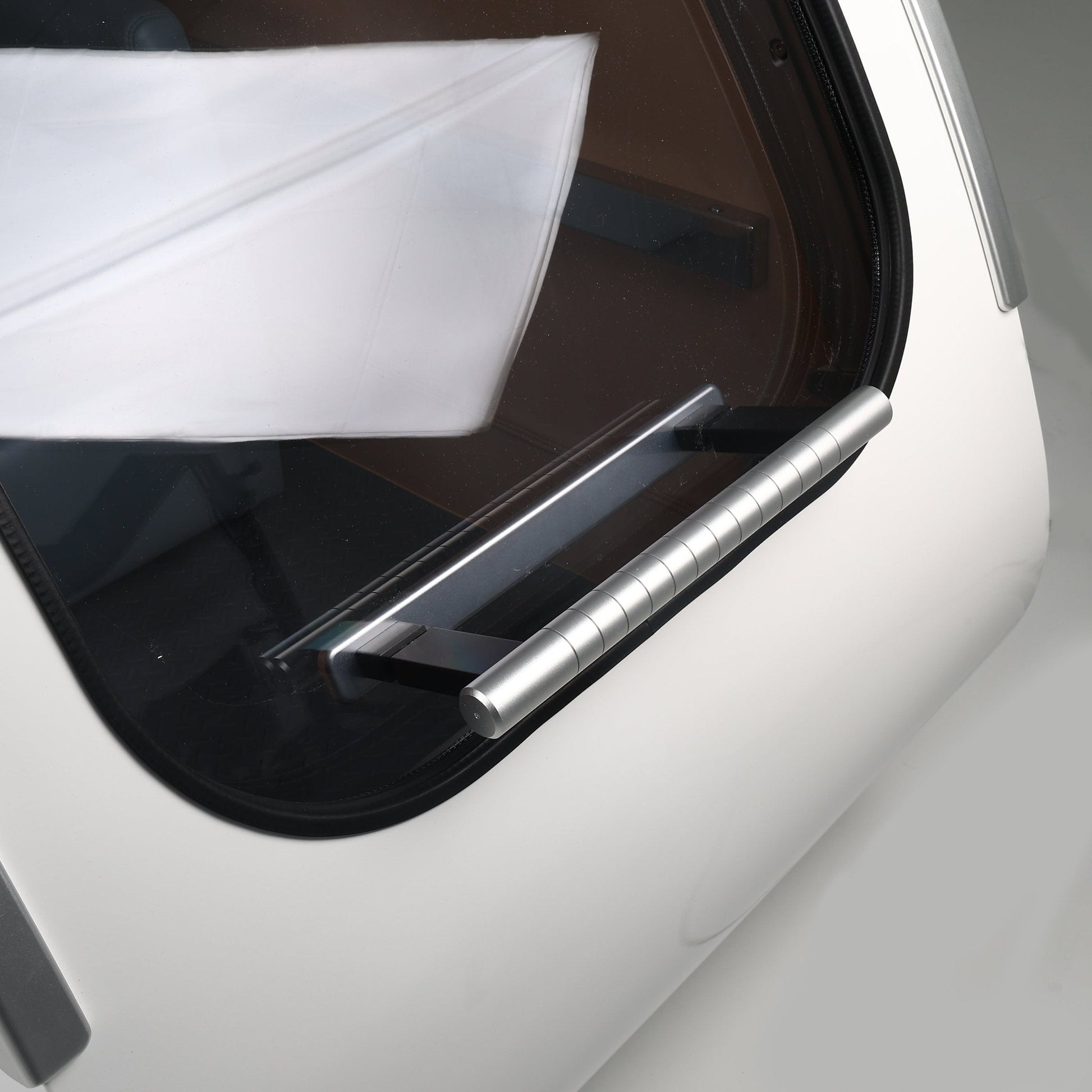

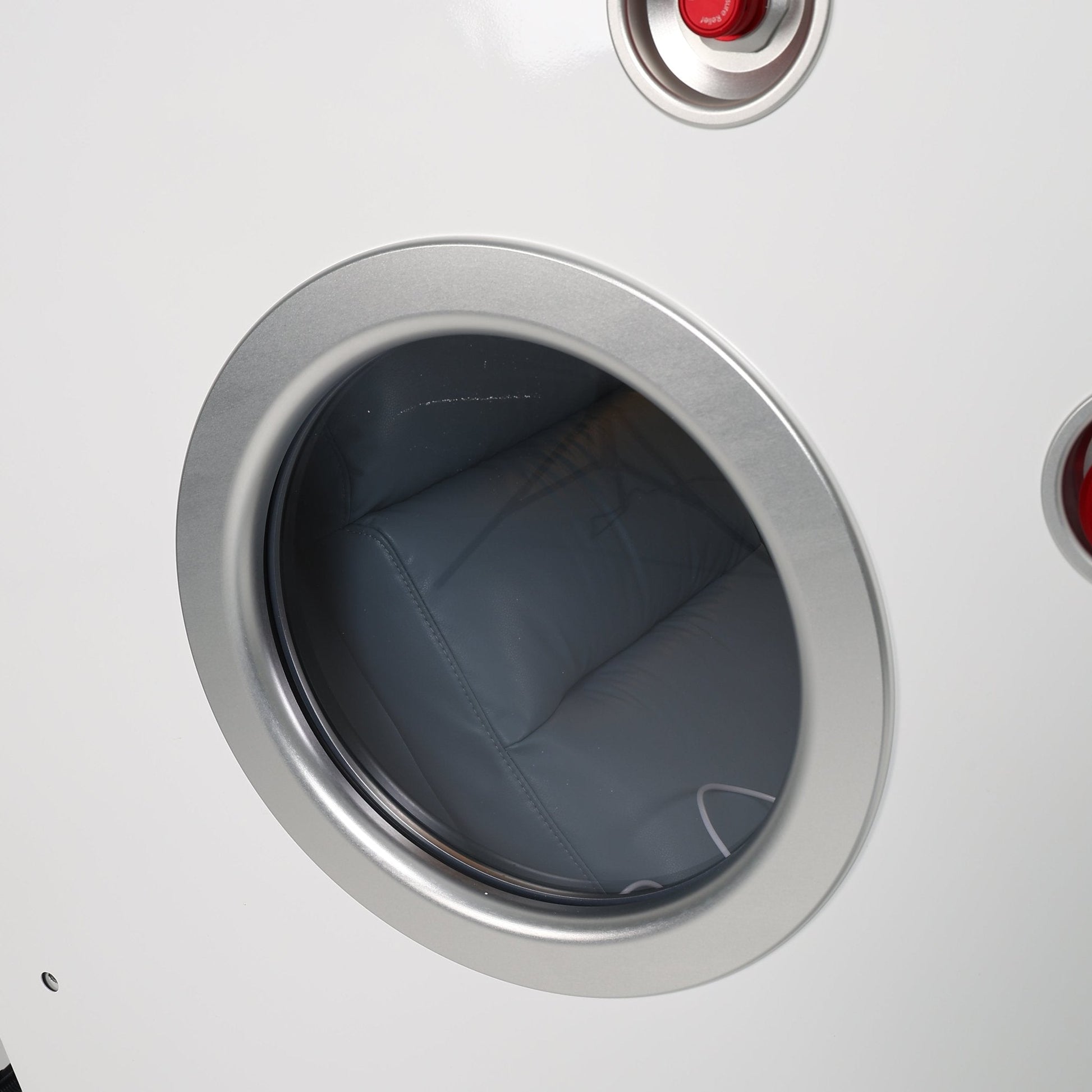

Aviation-Style Lift-Up Door & Windows
High-transparency lift-up door and window design for visibility and easy access. Viewing area supports visual connection between operator and user throughout the session.

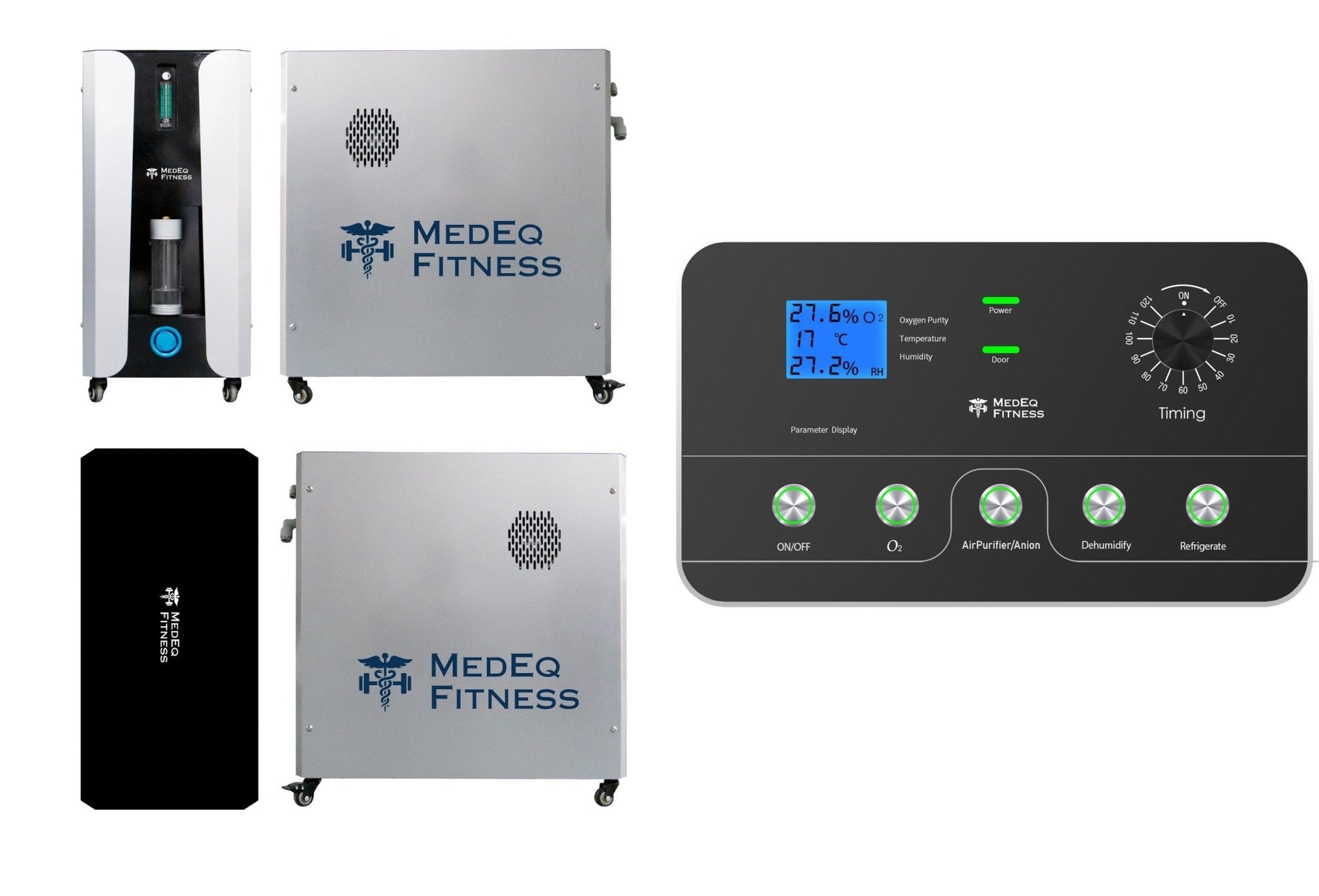

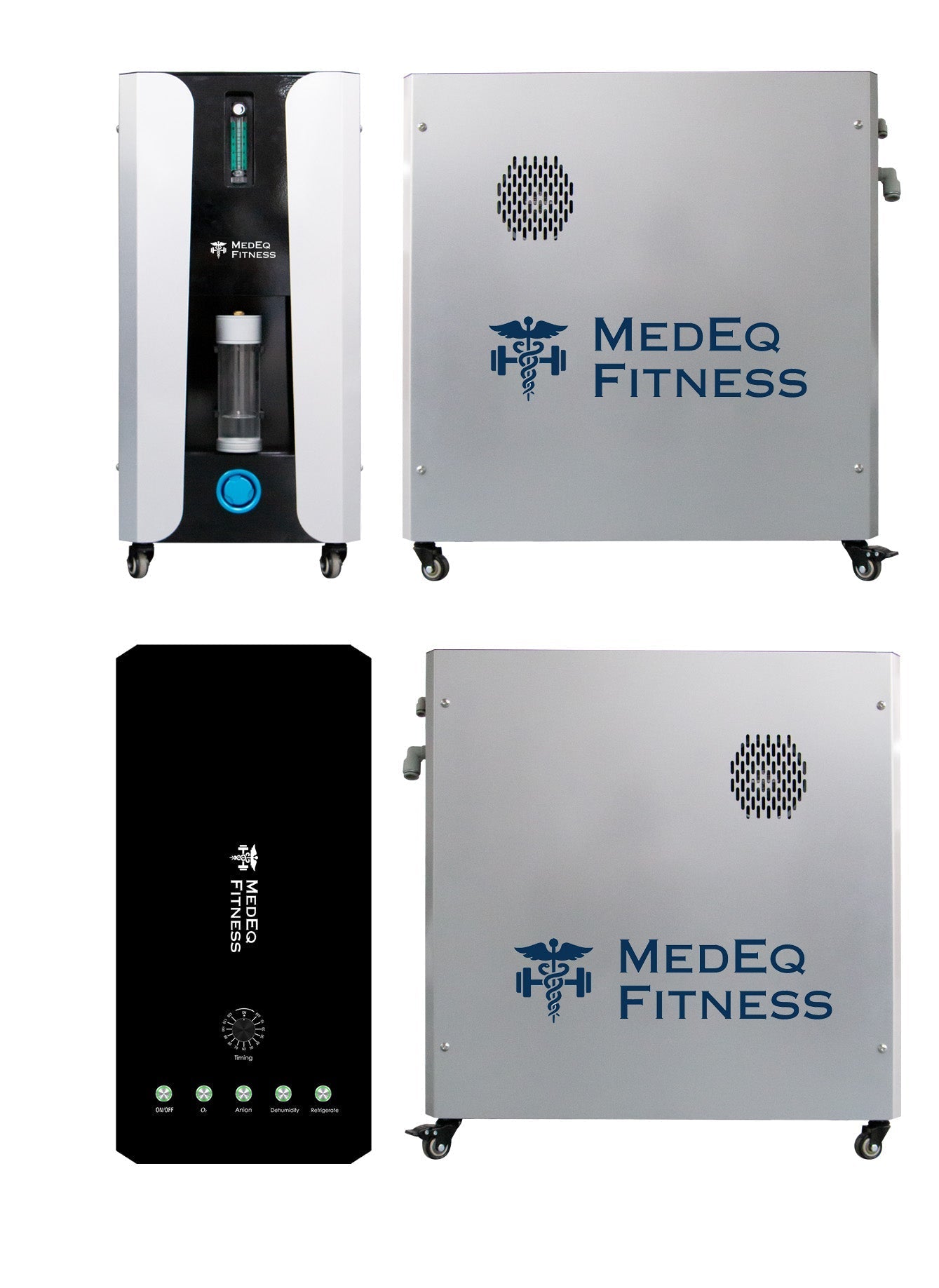

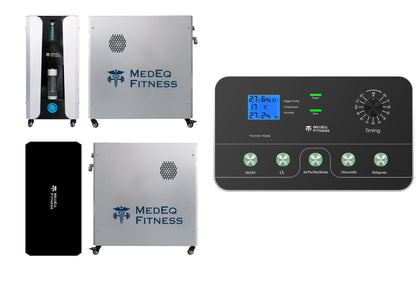

Integrated Host Unit (Air, Oxygen & Climate)
Dedicated host unit manages chamber pressurization, oxygen delivery, and climate functions in a unified package. High-flow oxygen generation with continuous-production PSA technology — no external tanks required. Dehumidifying and cooling capabilities (configuration dependent).
Advanced Air Disinfection & Ionization
In-chamber air disinfection system designed to reduce microbial load. Negative ion and filtration features (configuration dependent) for cleaner cabin air.
Quiet, Monitored Sessions
Cabin and host system tuned for low operational noise, targeting ≤50 dB. Internal and external display interfaces show key operating data (pressure, oxygen, temperature/humidity where configured).

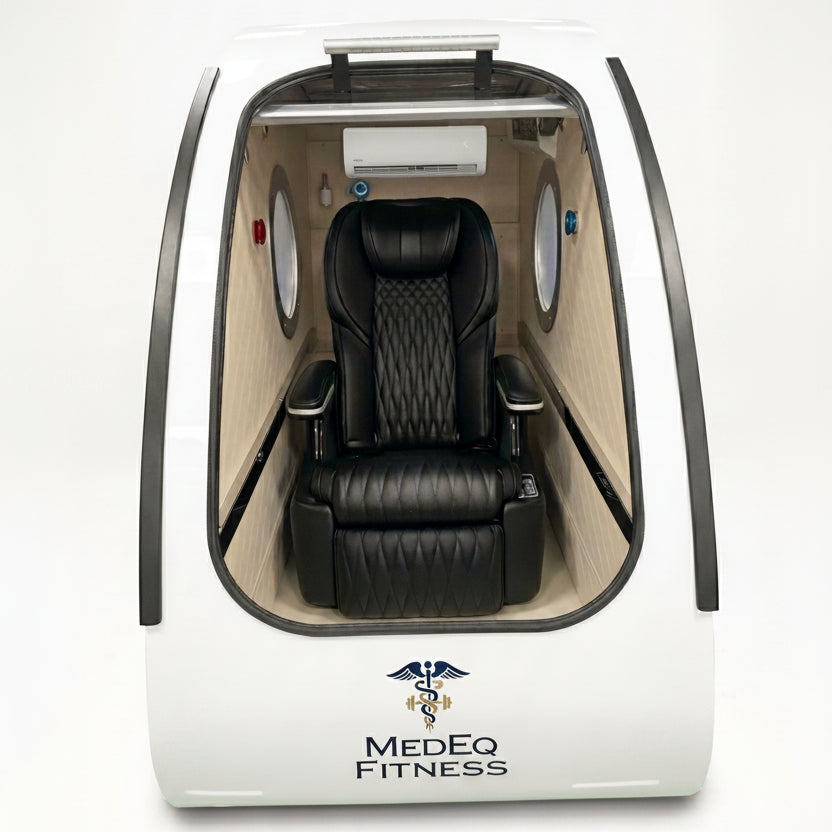

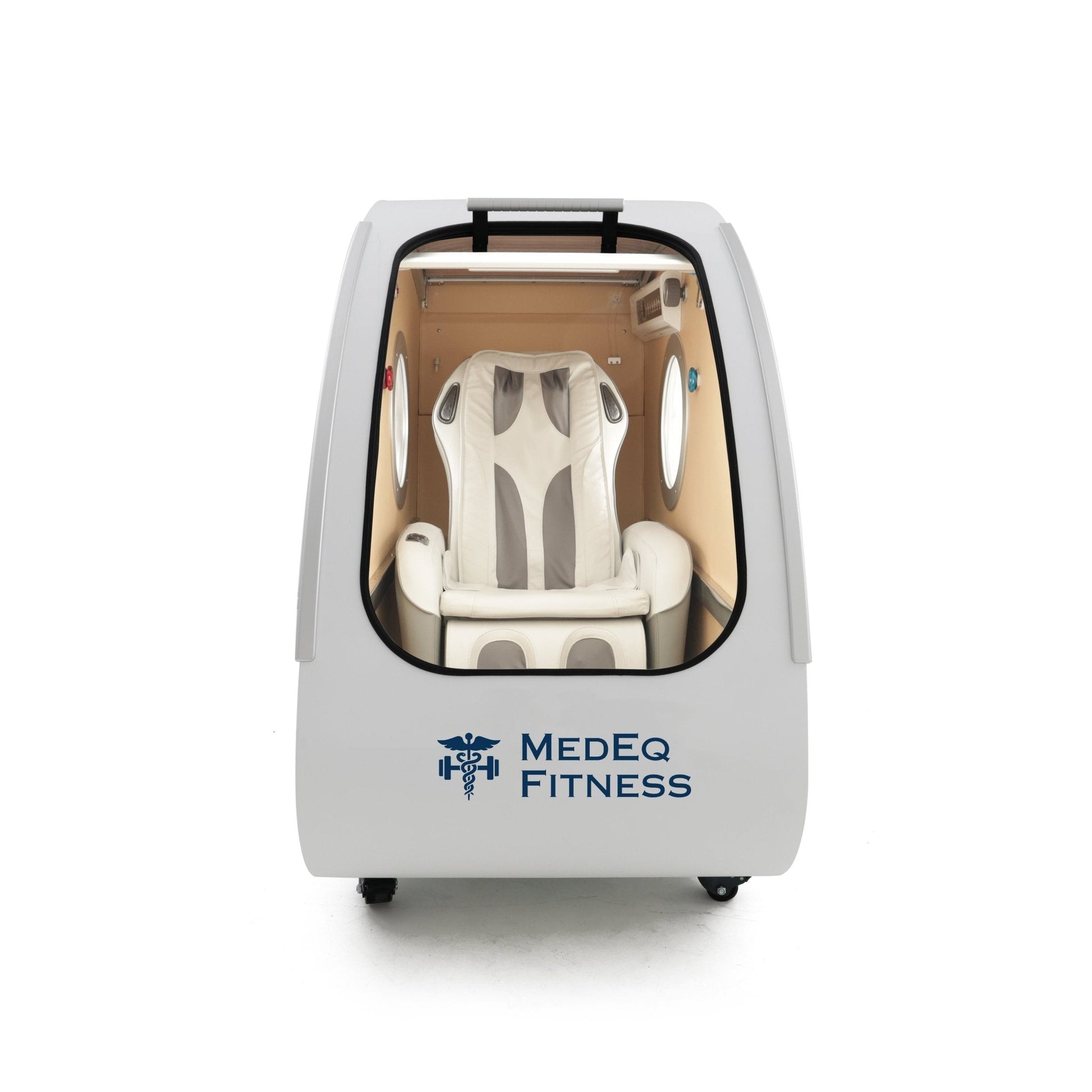

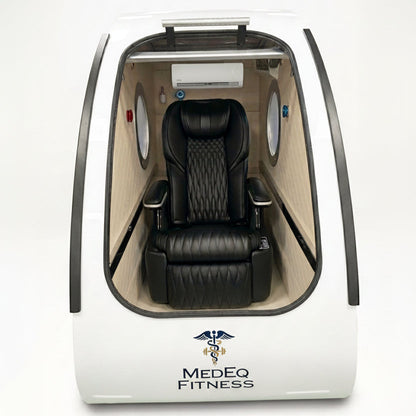

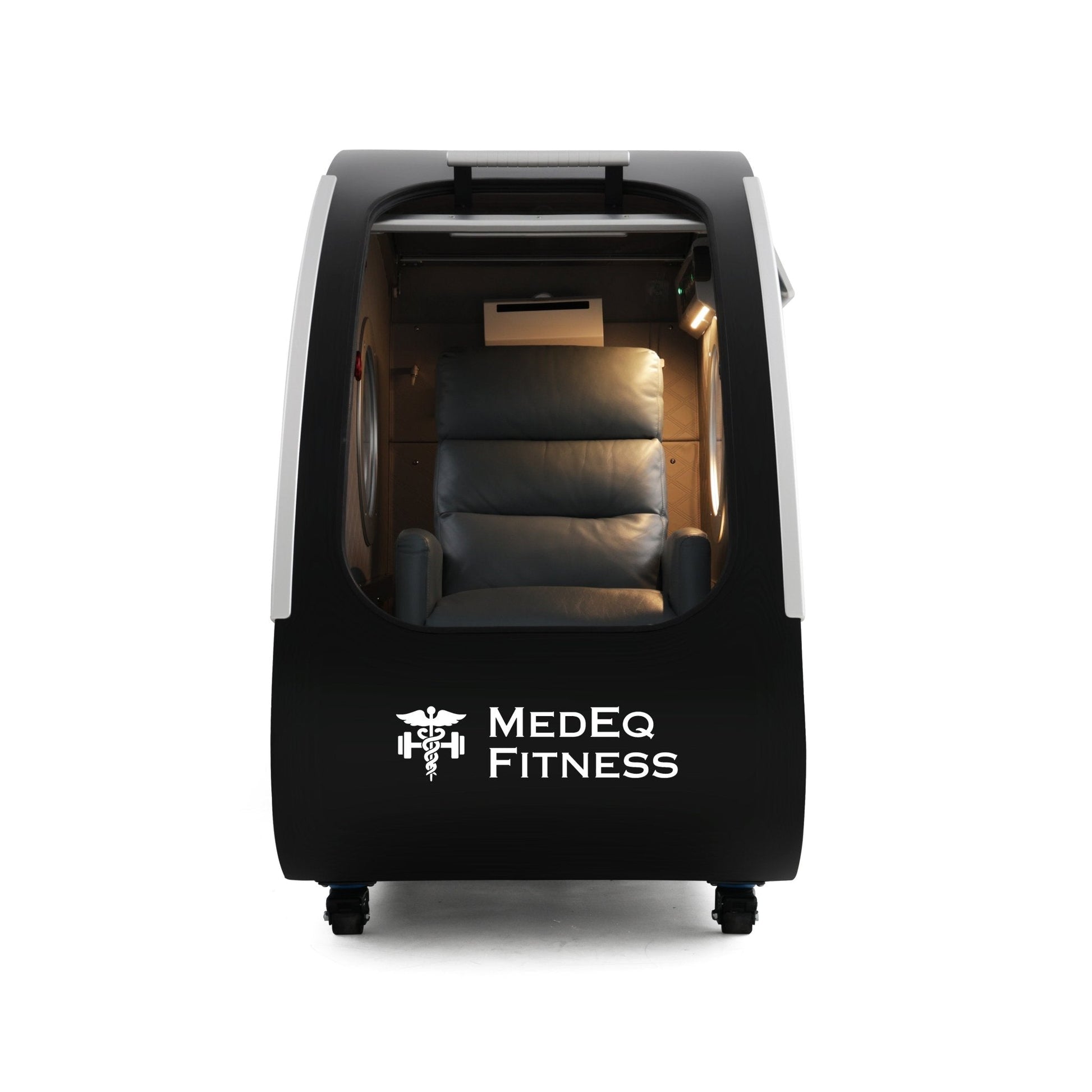

Monoplace Cabin
Single-occupant chamber with interior finishing for comfort. Castors under the base allow repositioning as needed.
Chamber Specifications
| Spec | Detail |
|---|---|
| Chamber Type | Triangular hard-shell monoplace hyperbaric chamber |
| Model | TimePod 2 – 2.0 ATA Triangular Space Monoplace |

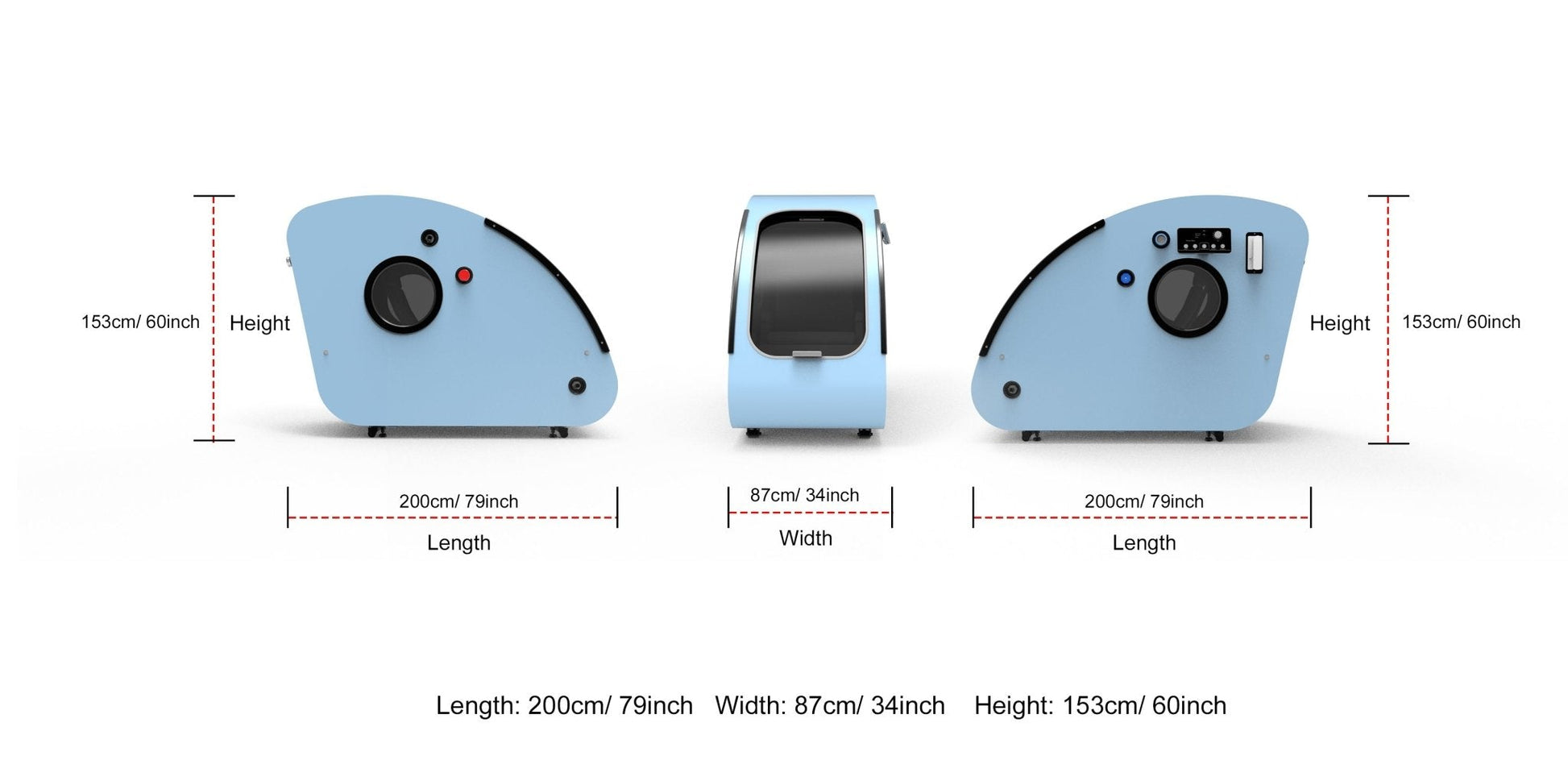

| External Dimensions | Approx. 200 x 87 x 153 cm (79 x 34 x 60 in) L x W x H — triangular footprint |
| Unit Weight | 600 kg / 1,325 lbs |
| Occupied Floor Space | Approx. 1.62 m² (triangular footprint) |
| Chamber Material | Nickel-steel alloy pressure shell with powder-coated exterior; composite/TPU-based interior finishes |
| Operating Pressure | Adjustable 1.3–2.0 ATA (configurations at 1.3 / 1.5 / 1.7 / 2.0 ATA) |
| Capacity | 1 person (monoplace) |
| Noise Level | Target ≤50 dB during normal operation |
| Power Supply | AC 110V 60Hz / 220V 50Hz (model dependent) |
Optional Upgrades
BIBS Oxygen System — A mask-based oxygen delivery system providing higher-concentration O₂ during pressurized sessions. Delivers focused high-purity O₂ via mask inside the chamber; reduces O₂ load inside the chamber for added safety at higher ATA. Compatible with all TimePod and TimeCapsule-series host units.
Integrated Red-Light Panel — An internal red-light therapy panel designed for even coverage while minimizing heat and glare. Optimized for wavelengths commonly used in wellness applications (630–660nm & 850nm).
Oxygen & Climate System
| Spec | Detail |
|---|---|
| Oxygen Supply | High-flow PSA oxygen generation (e.g., 10–15 L/min), sized for up to 2.0 ATA operation |
| Oxygen Concentration | ≥90% at the oxygen outlet (configuration dependent) |

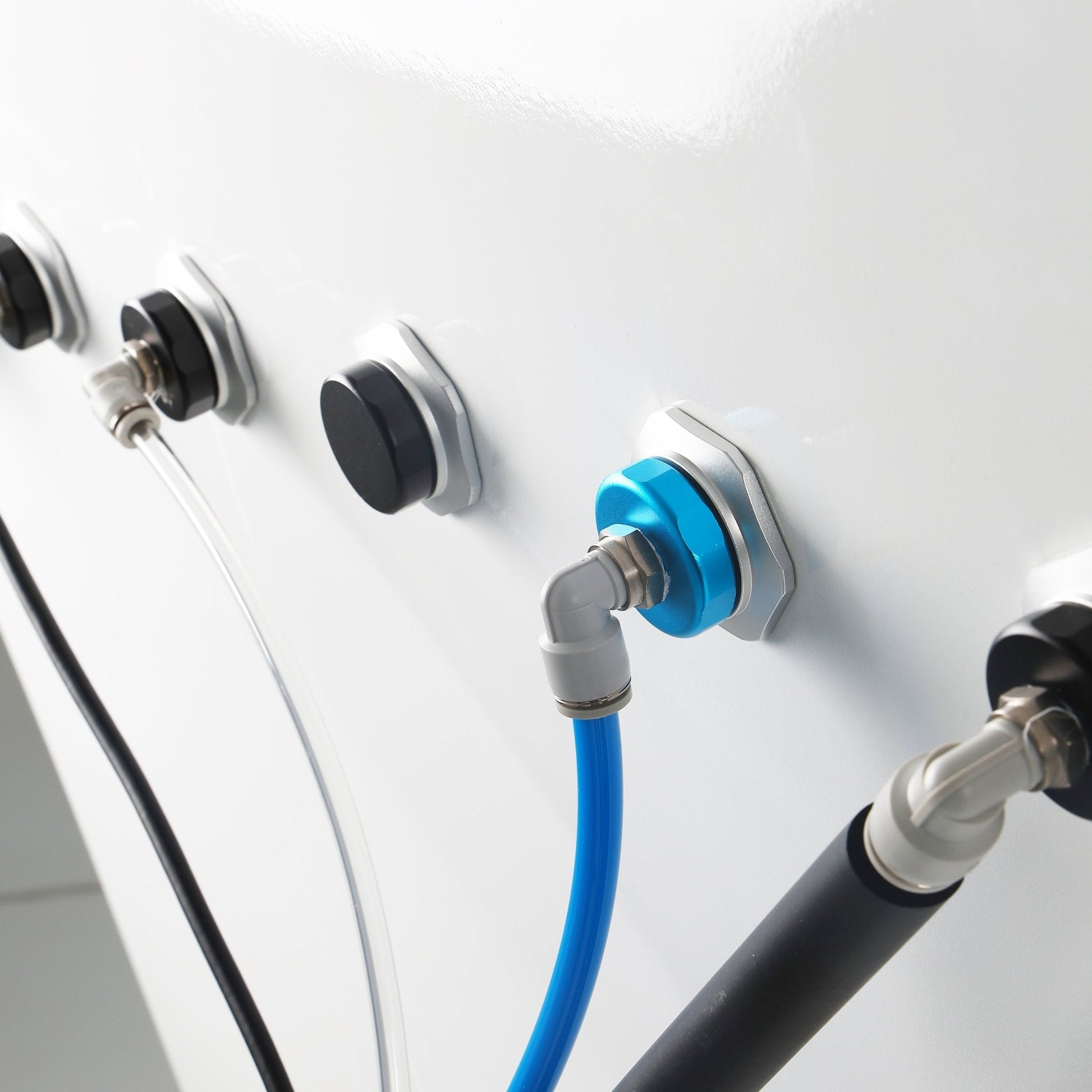

| Air & Pressurization | Integrated air compressor and chamber control within host unit console |
| Cooling & Dehumidification | System designed to maintain comfortable cabin temperature and humidity at elevated pressures |
| Disinfection & Air Quality | In-cabin air disinfection and ionization technologies for enhanced air quality |
Safety & Controls
| Spec | Detail |
|---|---|

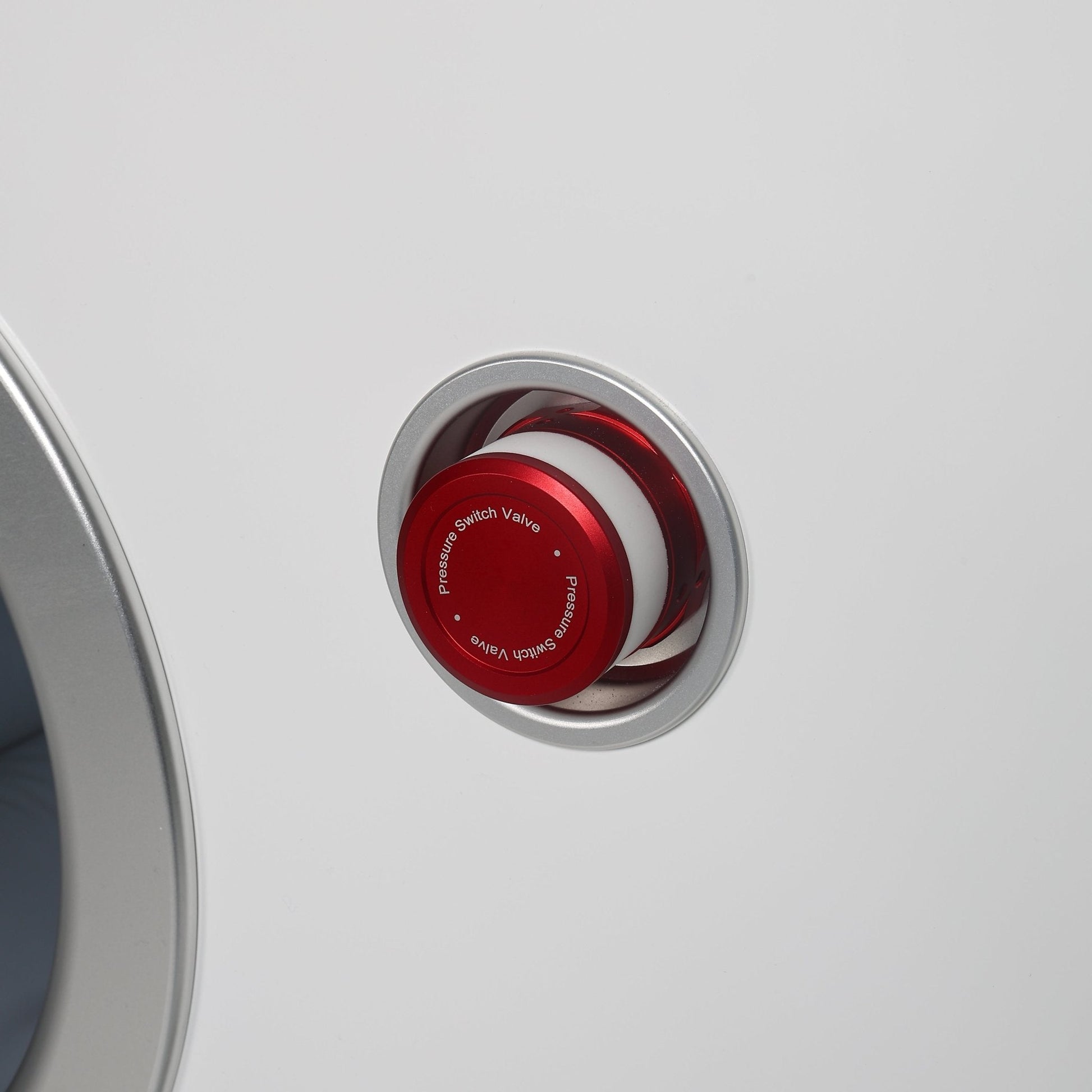

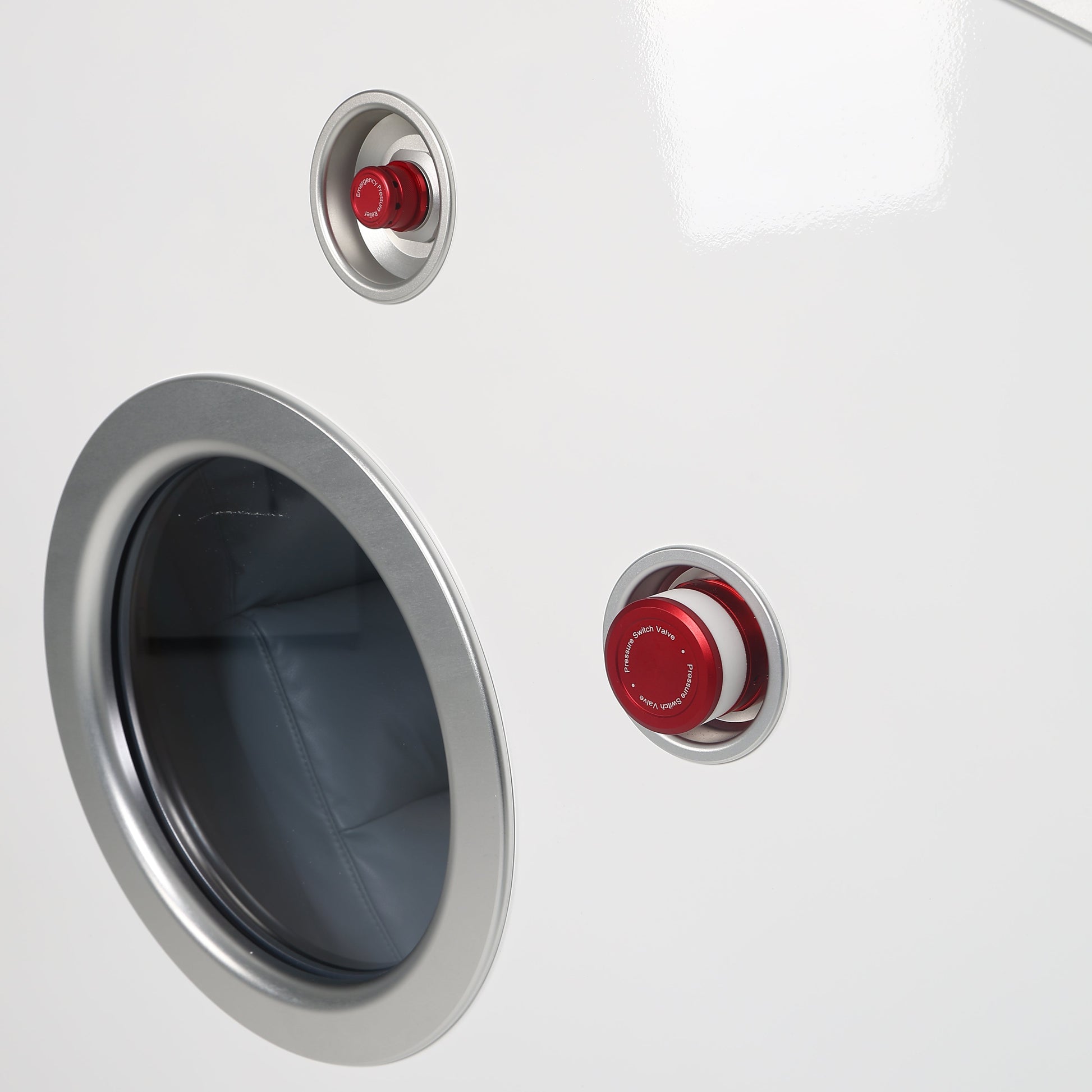

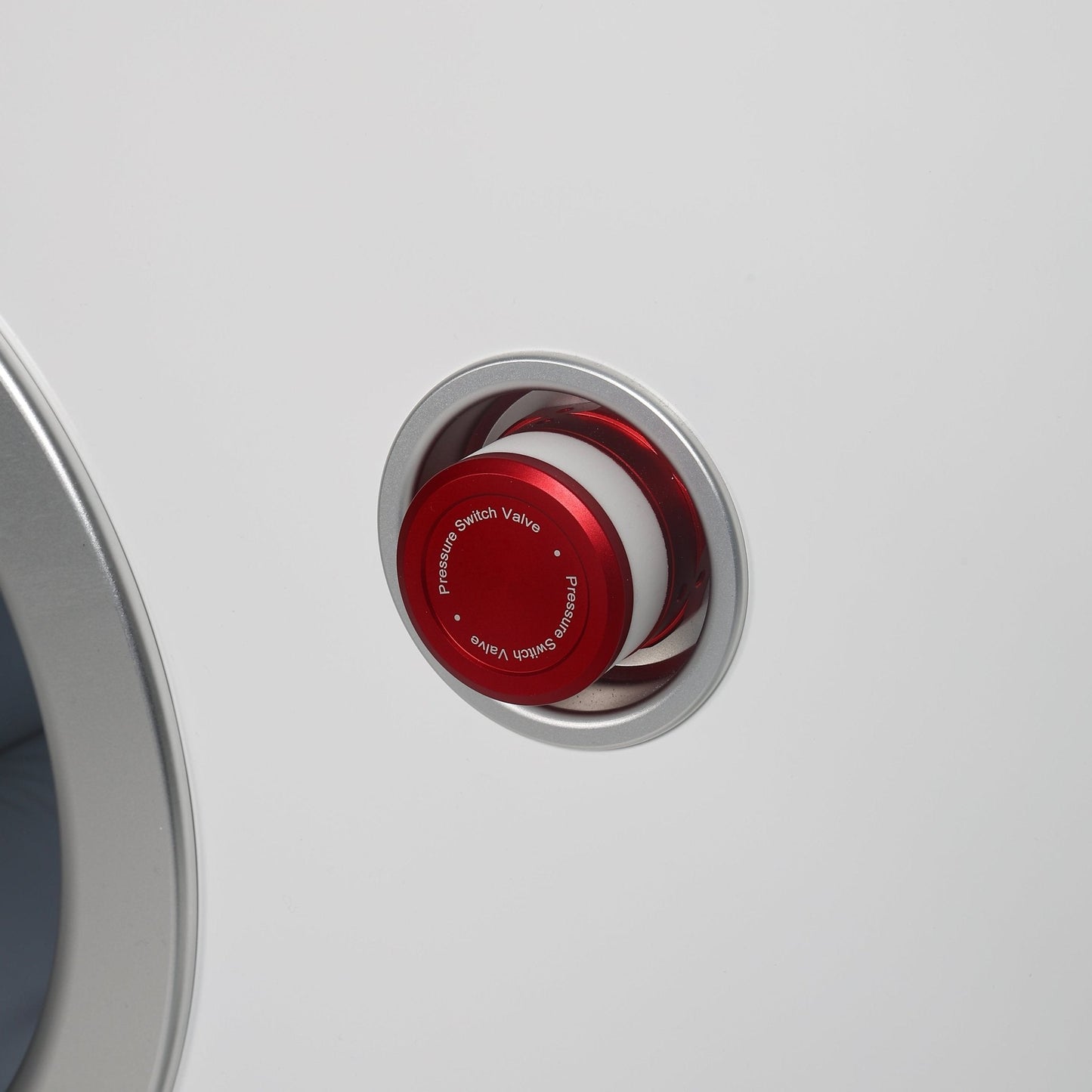

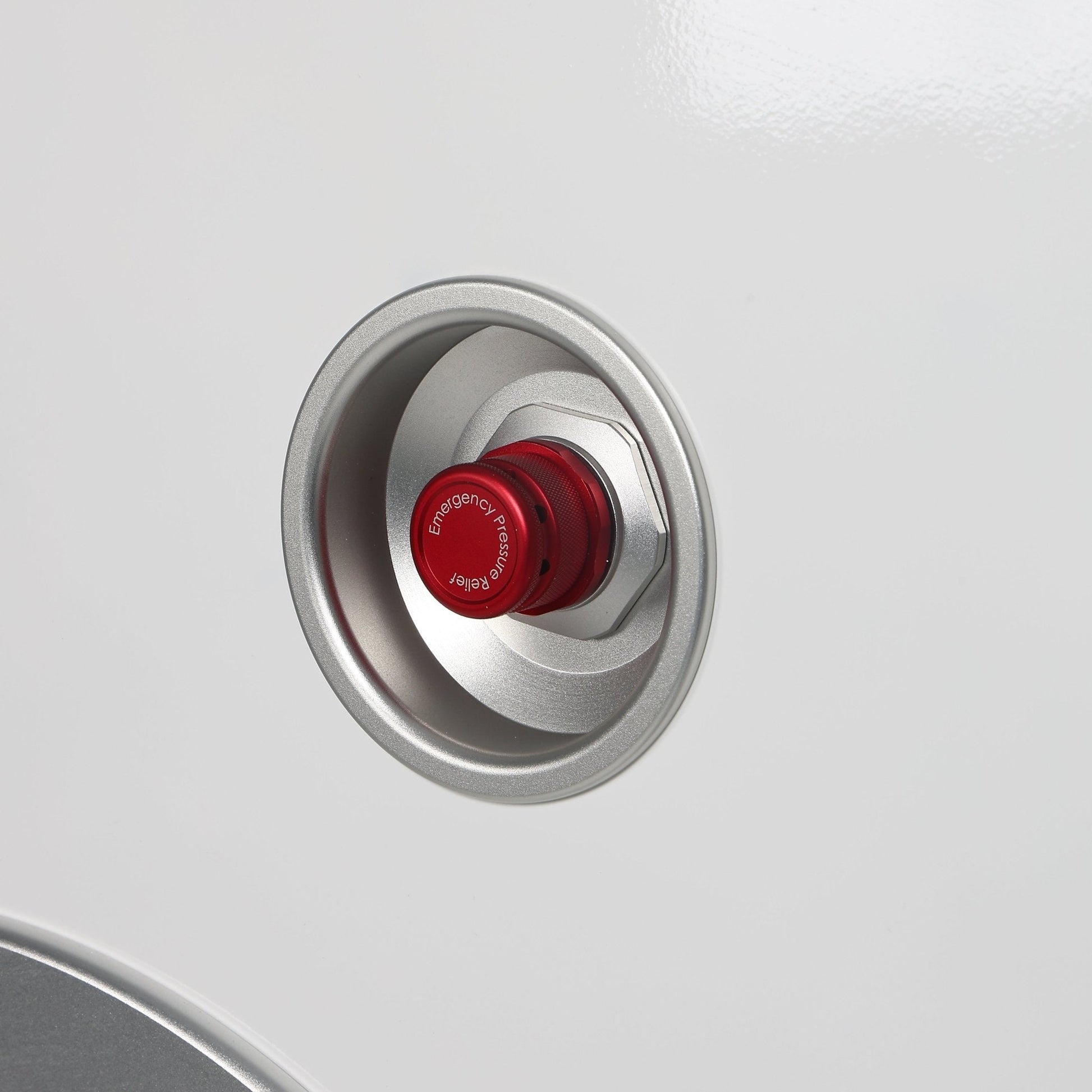

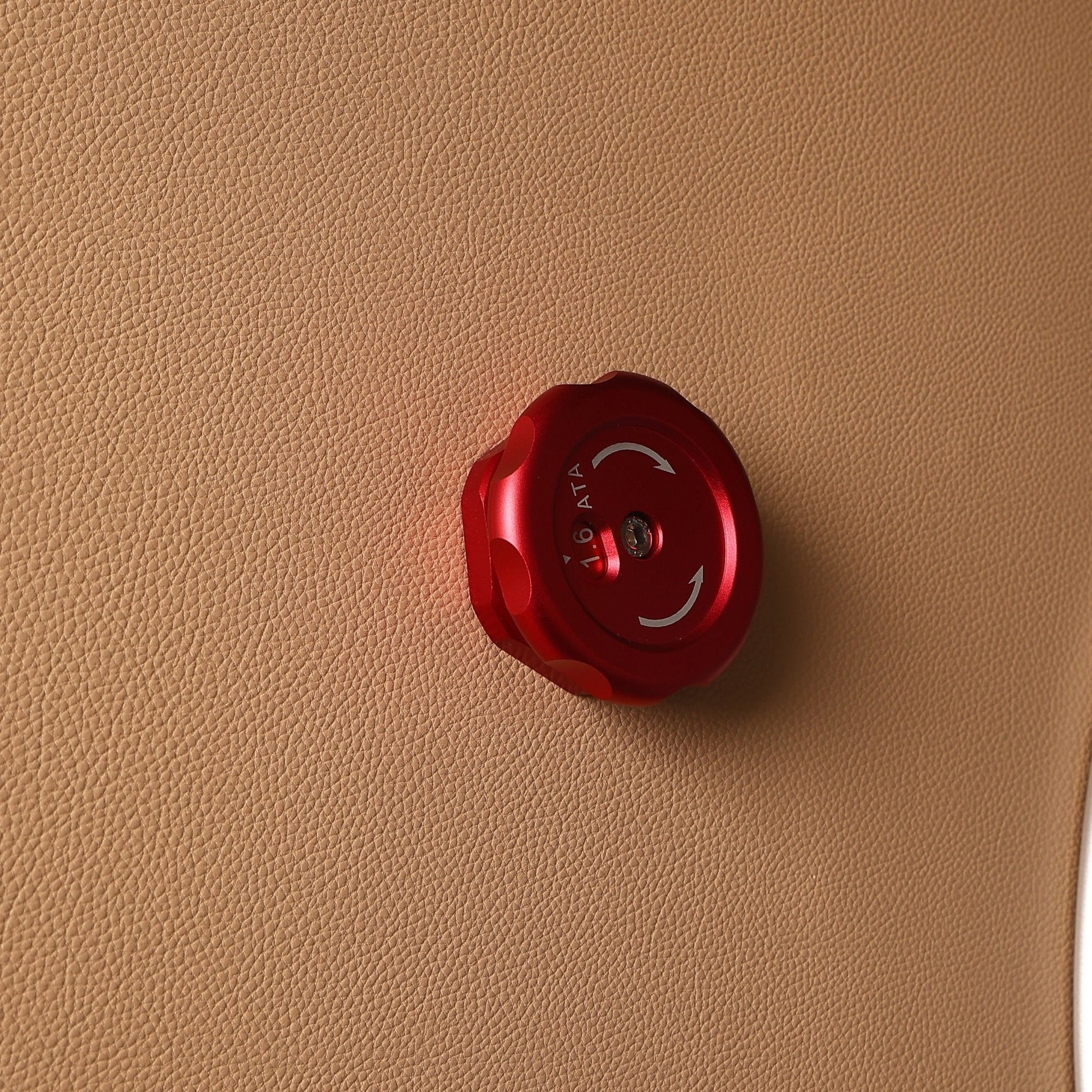

| Pressure Safety | Multi-layer pressure protection with automatic and manual pressure relief valves |

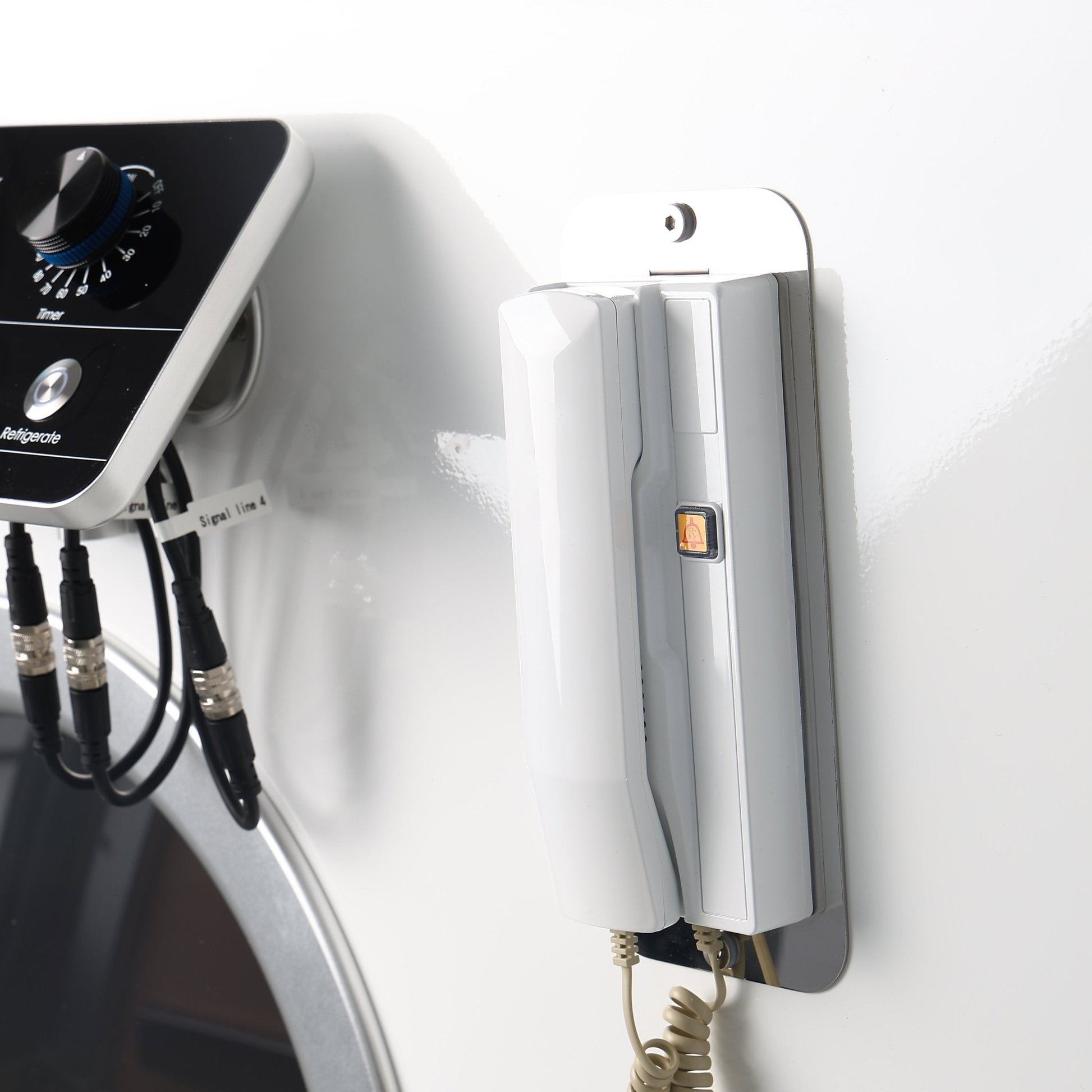

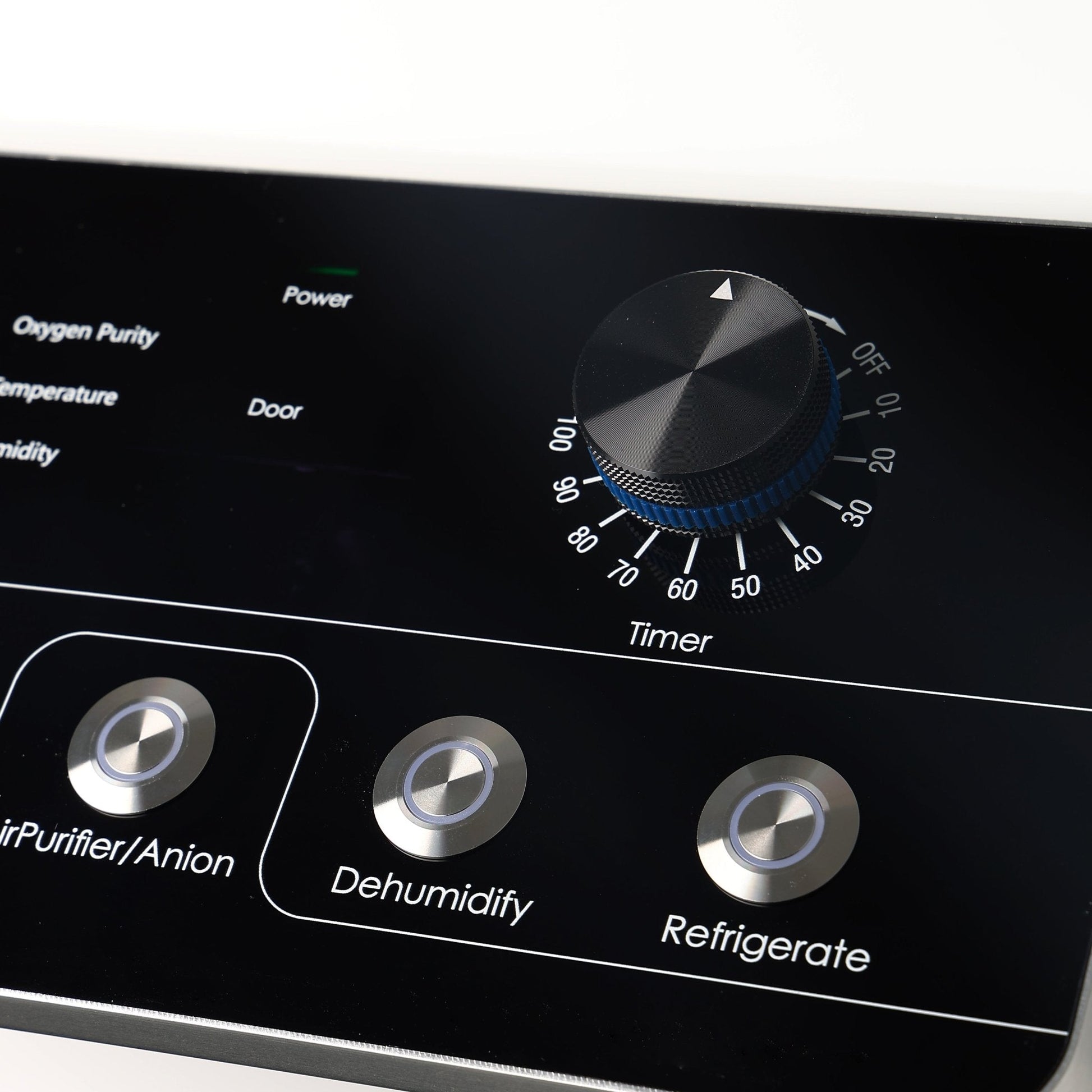

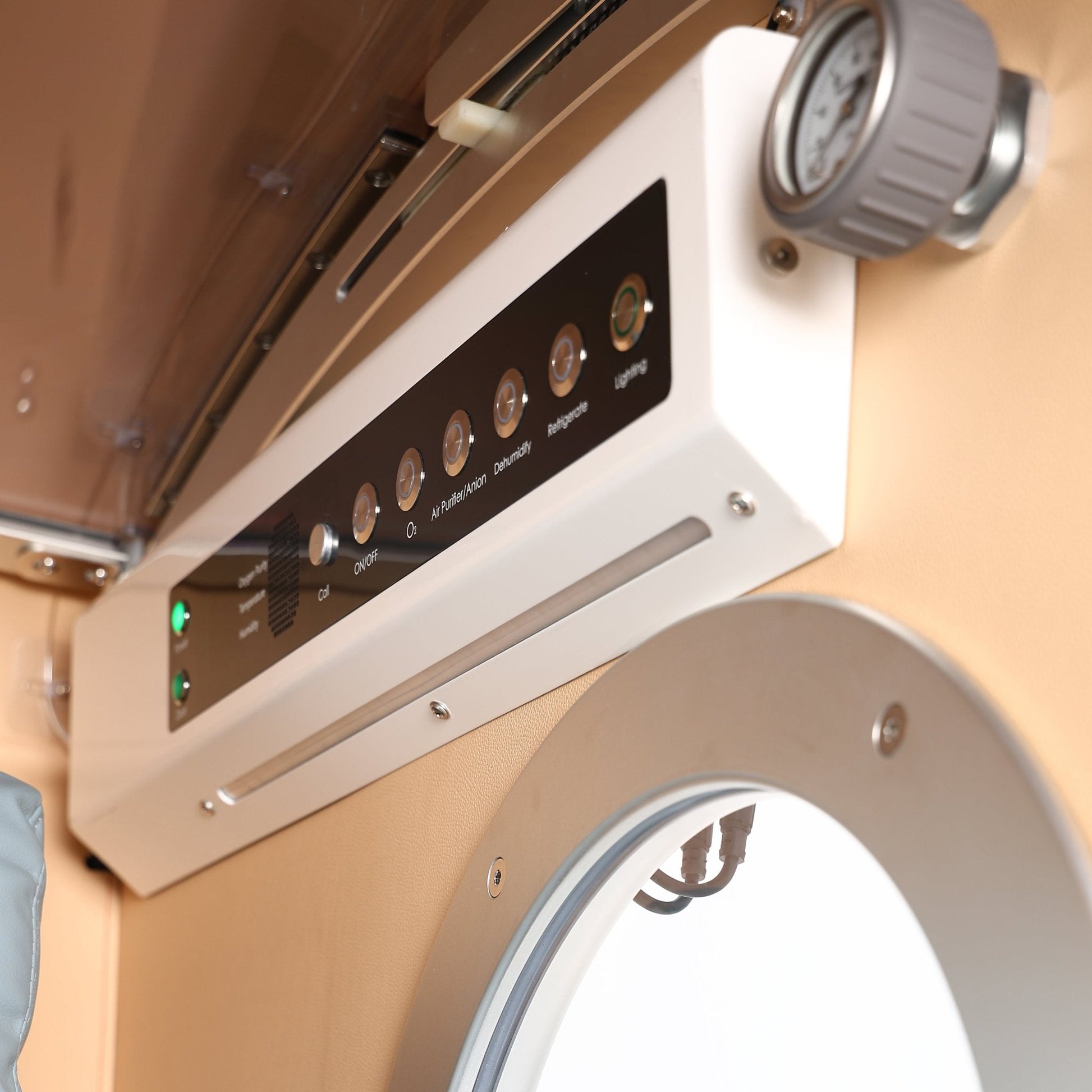

| Control Interfaces | Internal/external duplex control screen and emergency stop functions (model dependent) |

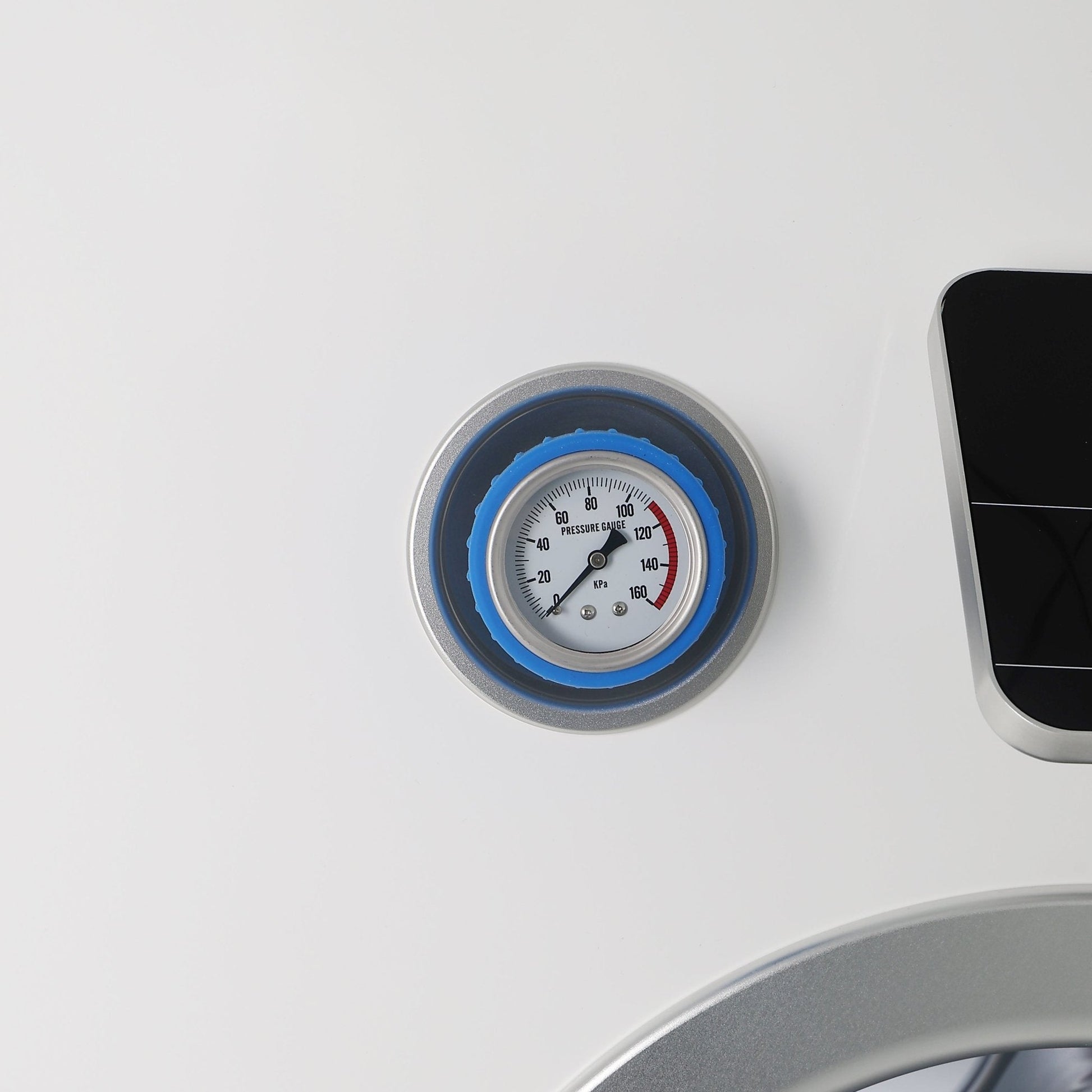

| Monitoring | External host displays operating parameters; internal gauges show chamber pressure |
| Entry & Exit | High-transparency lift-up door with safety interlocks and emergency release protocols |
Built for the Full Recovery Cycle
TimePod 2 is designed to support performance and recovery goals with a streamlined, high-capability platform — combining adjustable pressure therapy, integrated oxygen and climate control, and optional upgrades like red-light therapy in a single, space-efficient unit.
Maintenance
| Frequency | Task |
|---|---|
| After Each Use | Wipe interior surfaces, cushions, and contact points with a mild, non-abrasive disinfectant compatible with chamber materials |
| Weekly | Inspect door seals, gauges, valves, hoses, and host-unit filters for wear, leaks, or abnormal noise; verify smooth door operation |
| Annually | Schedule a full system check and host-unit service, including compressor and oxygen system maintenance |
Warranty
- Chamber body & door: 2-year limited warranty on shell, frame, and lift-up door assembly
- Host unit & electronics: Limited warranty on compressor, oxygen system, and control electronics
- Accessories & upgrades: Warranty on BIBS components, red-light panel, cushions, and ancillary accessories
See manufacturer warranty terms for full details.
Shipping & Installation
- Each chamber is manufactured under ISO-based quality systems and pressure-tested prior to shipment
- Standard sea freight and optional air freight available; transit times vary by destination and customs processing
- Chamber ships crated; delivery and placement services may be available in select regions
- Remote onboarding and training resources provided; additional installation support available on request
