TimeCapsule Air 1.5 - Portable Soft-Shell Hyperbaric Chamber - 1.3/1.5 ATA
TimeCapsule Air 1.5 - Portable Soft-Shell Hyperbaric Chamber - 1.3/1.5 ATA
Couldn't load pickup availability
Share

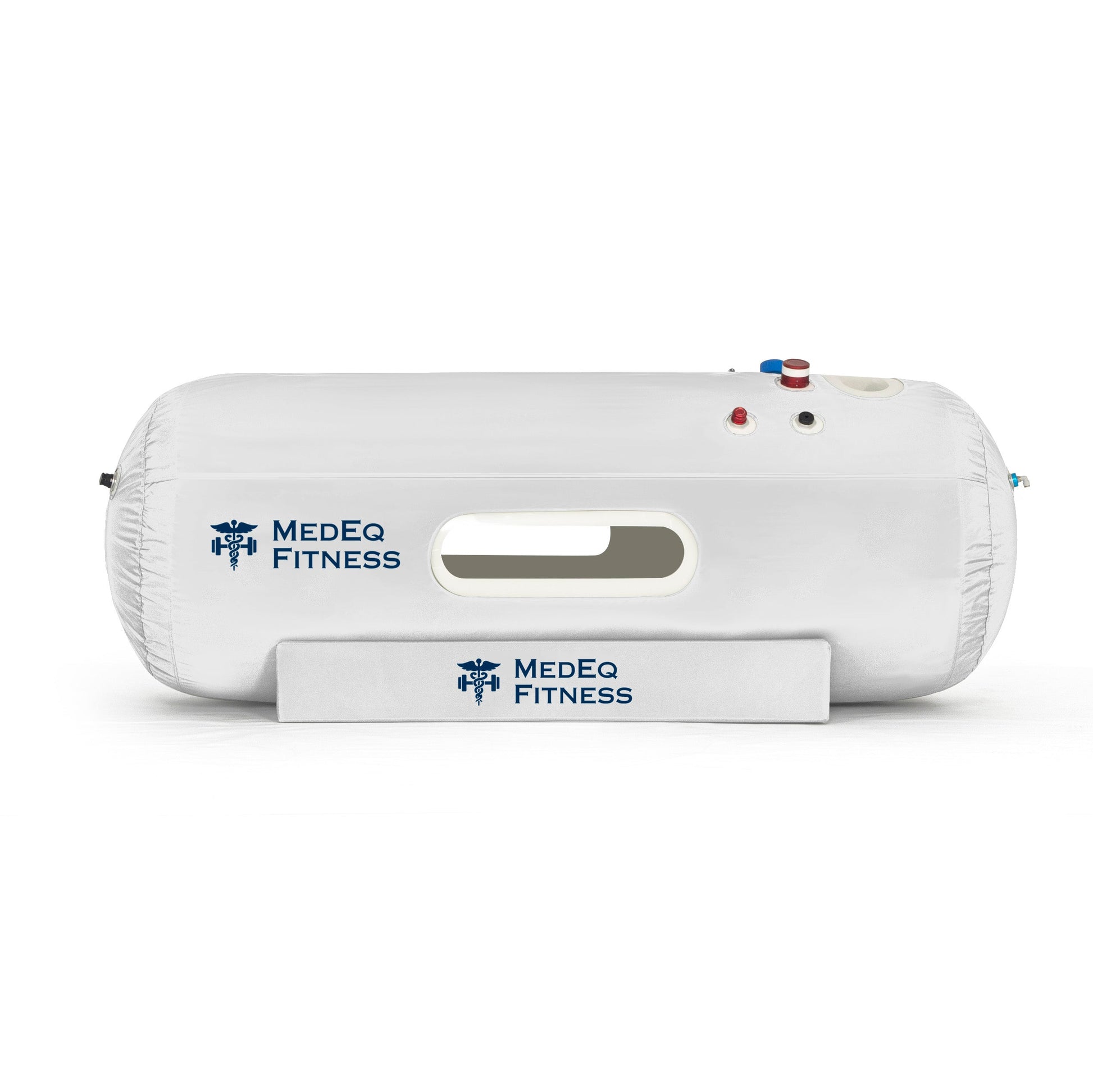

The TimeCapsule Air 1.5 is a compact, foldable soft-shell hyperbaric chamber built for portability and ease of use. This lying-type chamber offers full HBOT capability in a space-saving, transportable package — designed for reliable therapy without sacrificing flexibility.
With multiple size options, dual pressure settings (1.3 ATA and 1.5 ATA), an integrated 2-in-1 compressor + oxygen concentrator, and intuitive single-user controls, TimeCapsule Air 1.5 delivers serious hyperbaric performance in a genuinely compact footprint.
Key Features
Portable & Foldable Design
Soft-shell, lightweight construction folds for storage and transport. Compact footprint suited to smaller spaces and shared treatment areas.

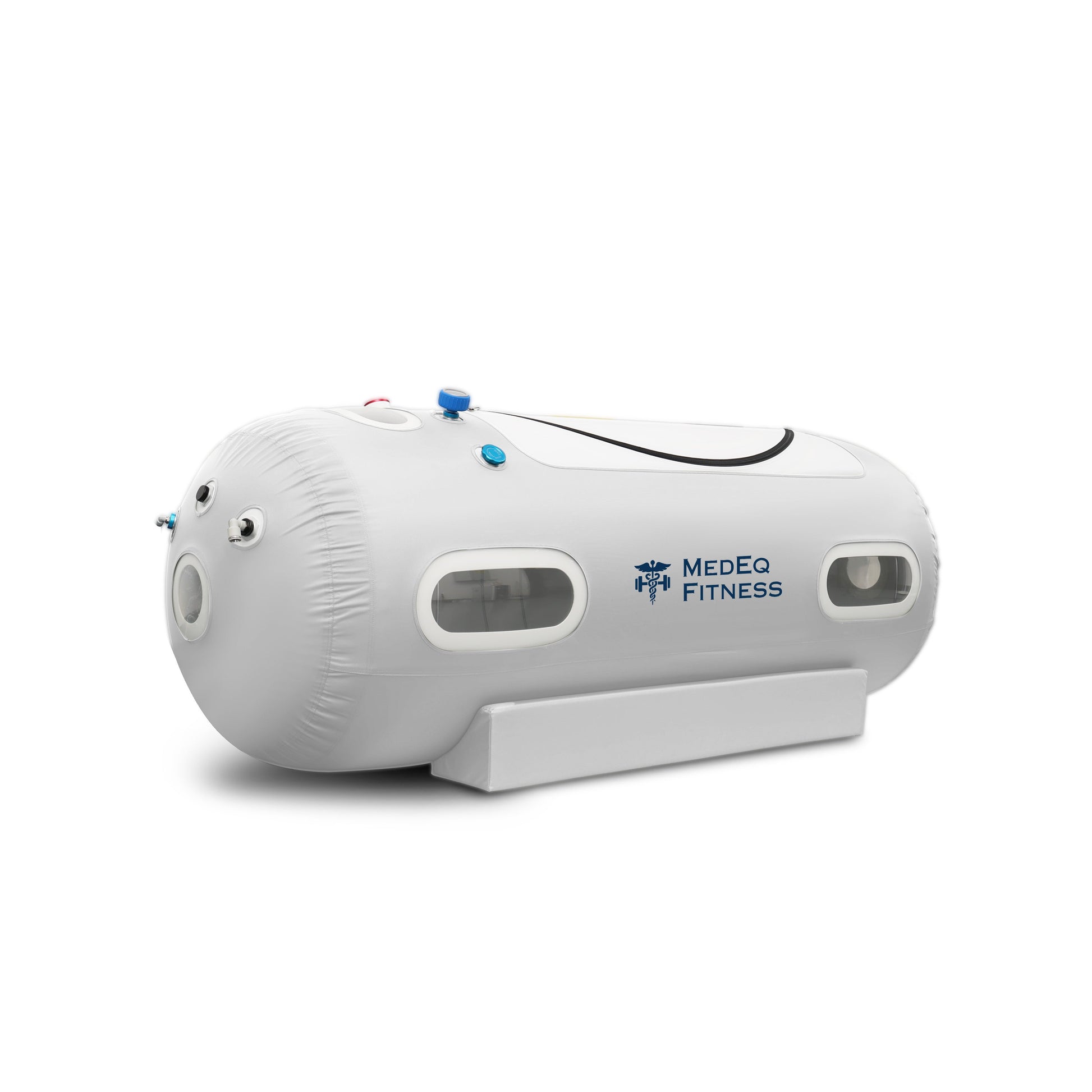

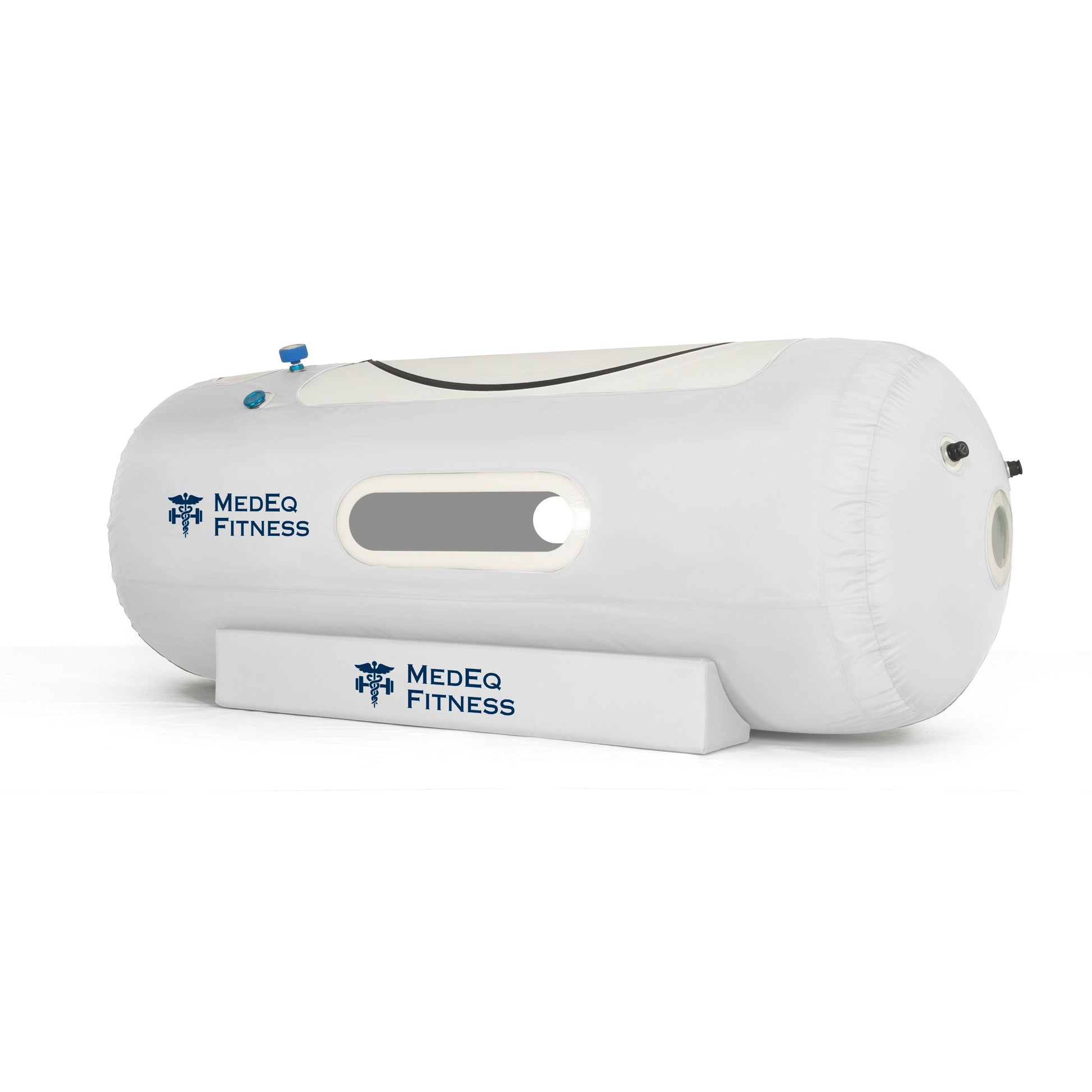

Soft-Shell Lying-Type Chamber

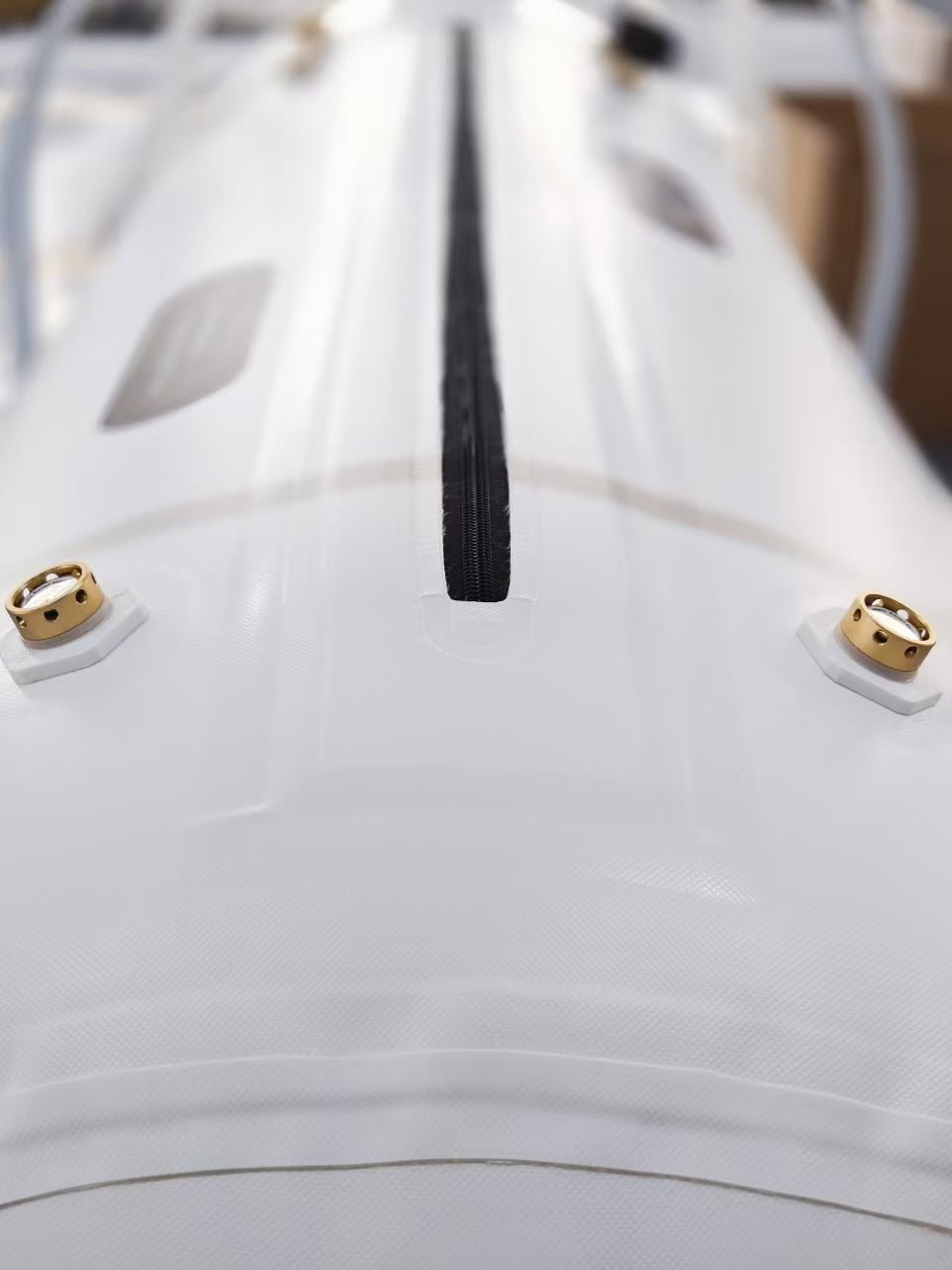

Built from 5-class TPU with high-frequency welded seams for strength and longevity. Non-toxic and non-polluting material for safer long-term use.
Multiple Size Options
Three length/diameter options to fit user size, space, and budget:
- 80 x 200 cm (≈32" x 79")
- 85 x 210 cm (≈34" x 83") — +$500 upgrade
- 90 x 220 cm (≈36" x 87") — +$1,000 upgrade
Dual Pressure Options
Selectable 1.3 ATA (≈4.5 PSI) or 1.5 ATA (≈7.2 PSI) operating pressure to tailor intensity per session. Real-time pressure display to monitor each session clearly.
Integrated 2-in-1 System
Built-in oxygen concentrator and air compressor in one package — no separate equipment required, reducing clutter, cabling, and setup complexity.
Dual Operating Modes
Switch between HBOT mode (pressurized) and oxygen-only mode (non-pressurized) depending on session goals.
Wireless Remote Control
Single-user operation via wireless handheld controller, designed so one person can operate the system independently.

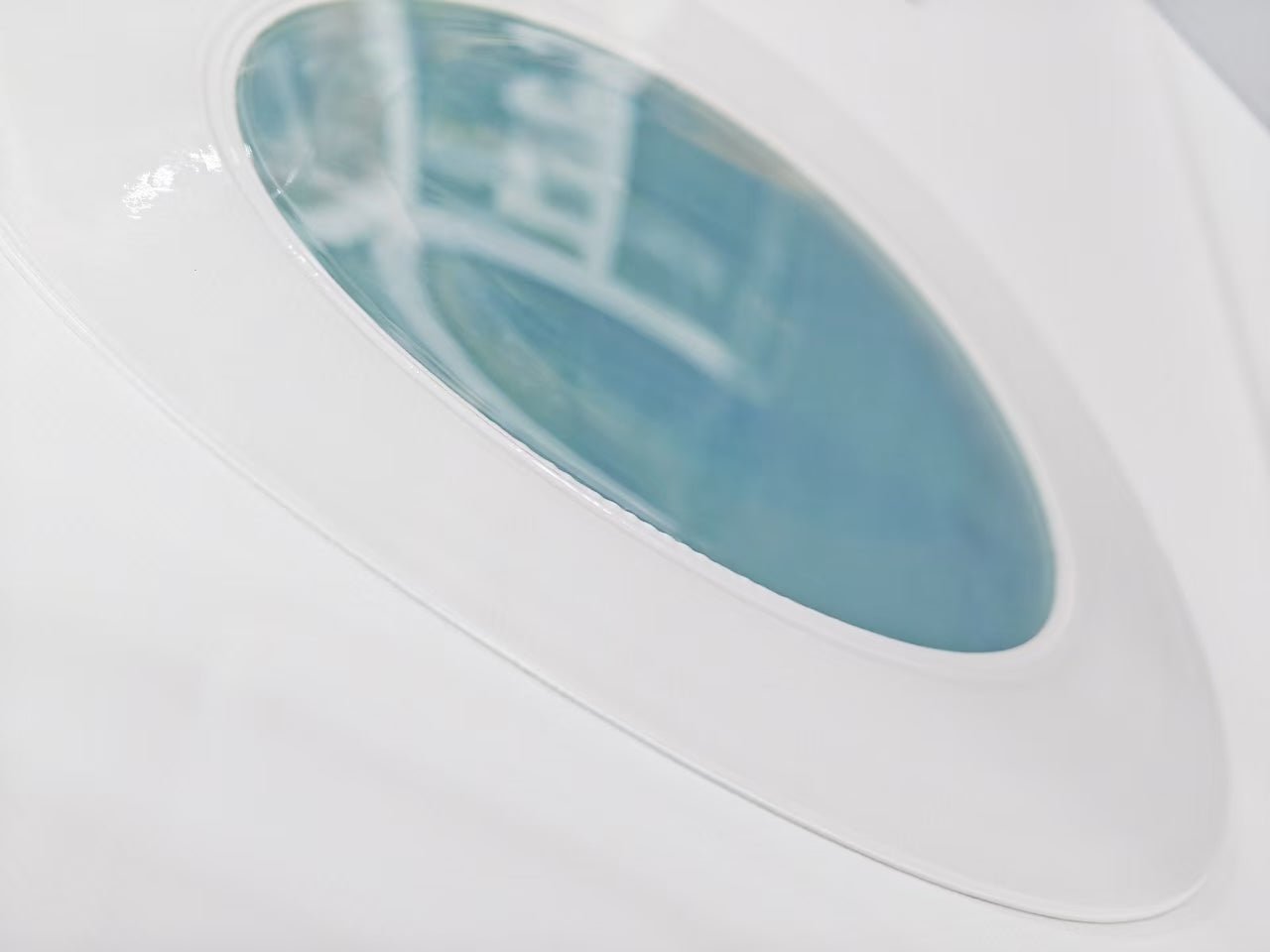

Large Viewing Windows
Overhead window (45 x 19 cm / ≈17.7" x 7.5") and side viewing bands (~15 cm / ≈5.9" wide) increase light and visibility, reducing feelings of enclosure.
Quiet, Real-Time Monitored Sessions
Sponge silencer reduces compressor and airflow noise. Real-time display of oxygen concentration and chamber pressure throughout the session.

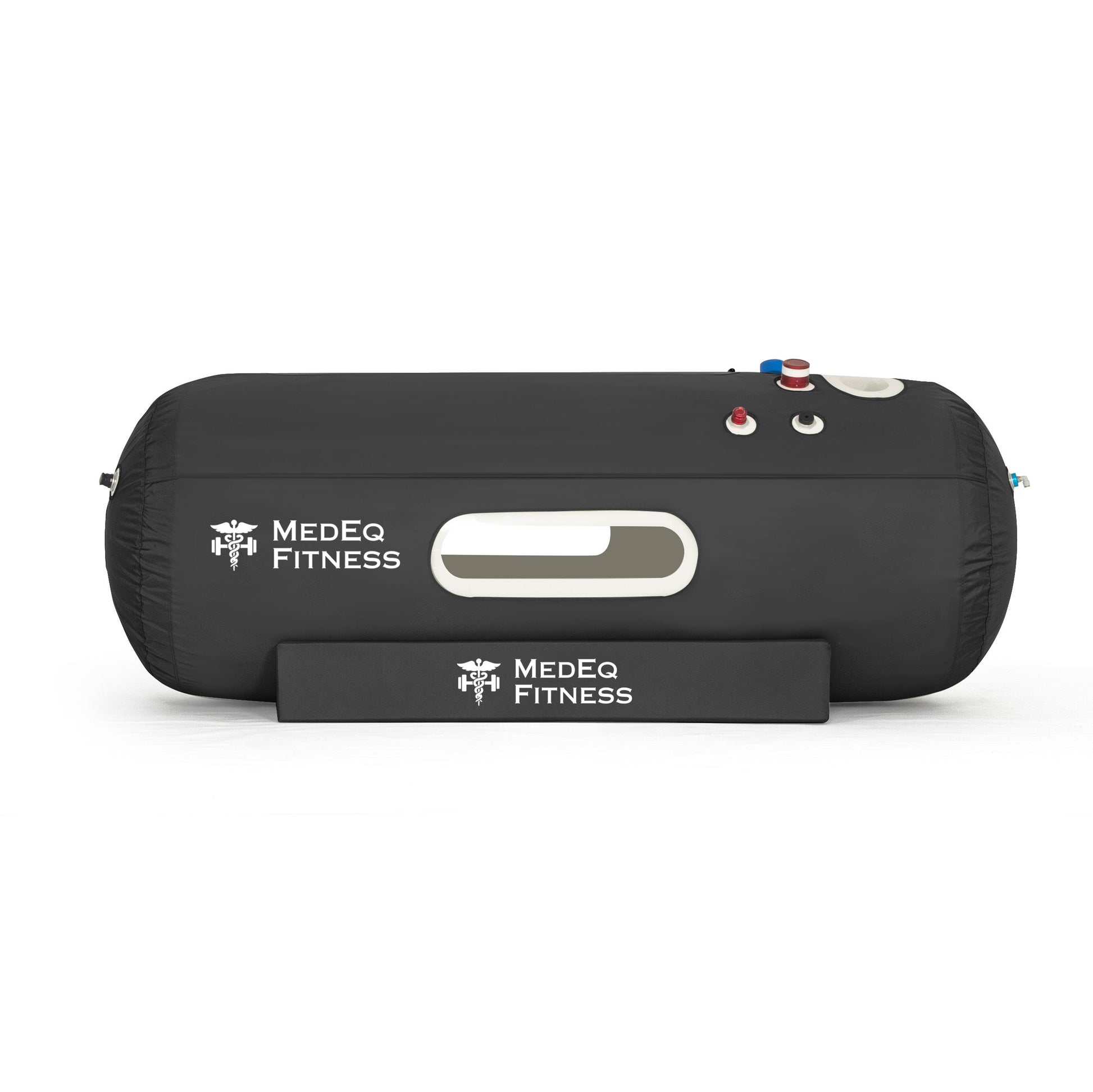

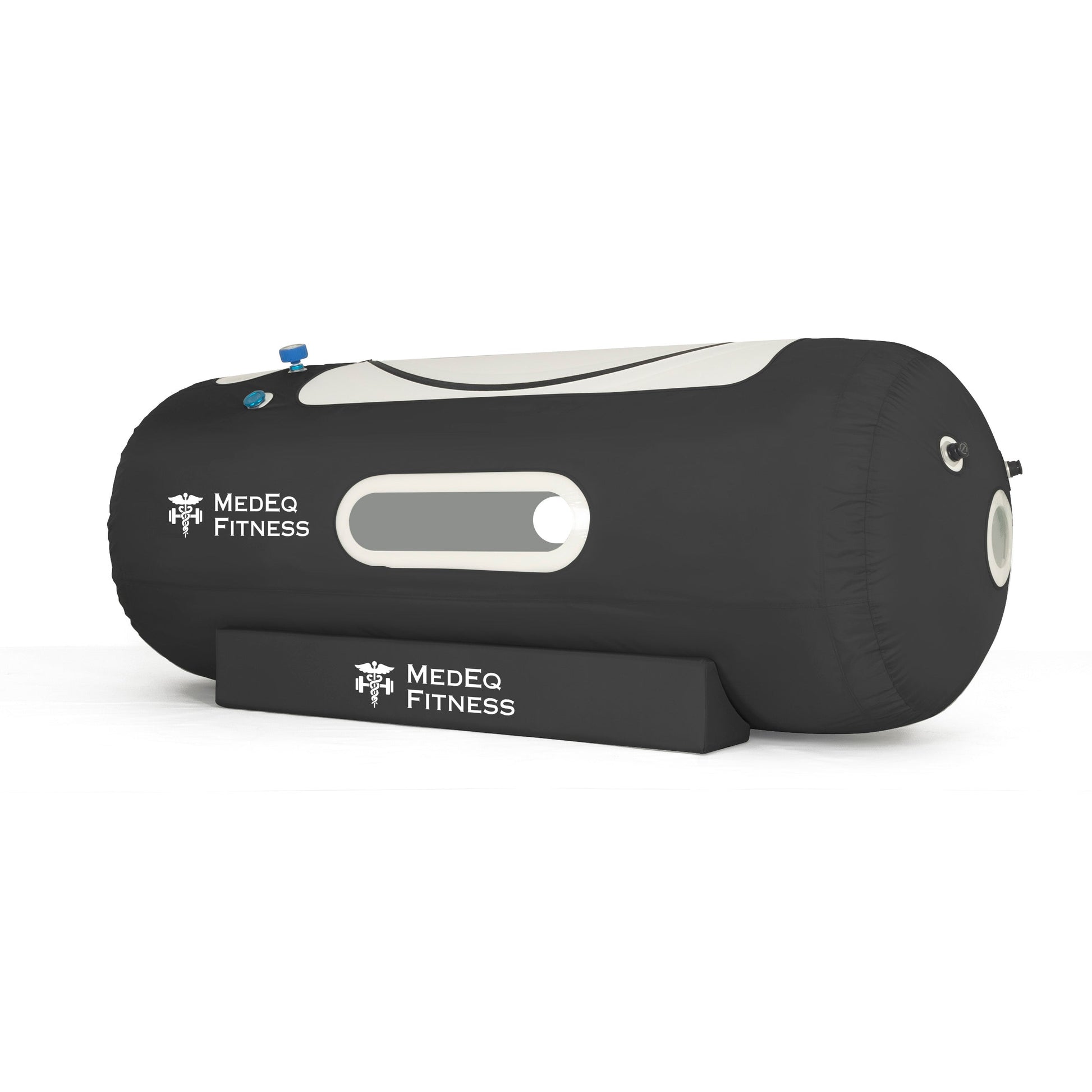

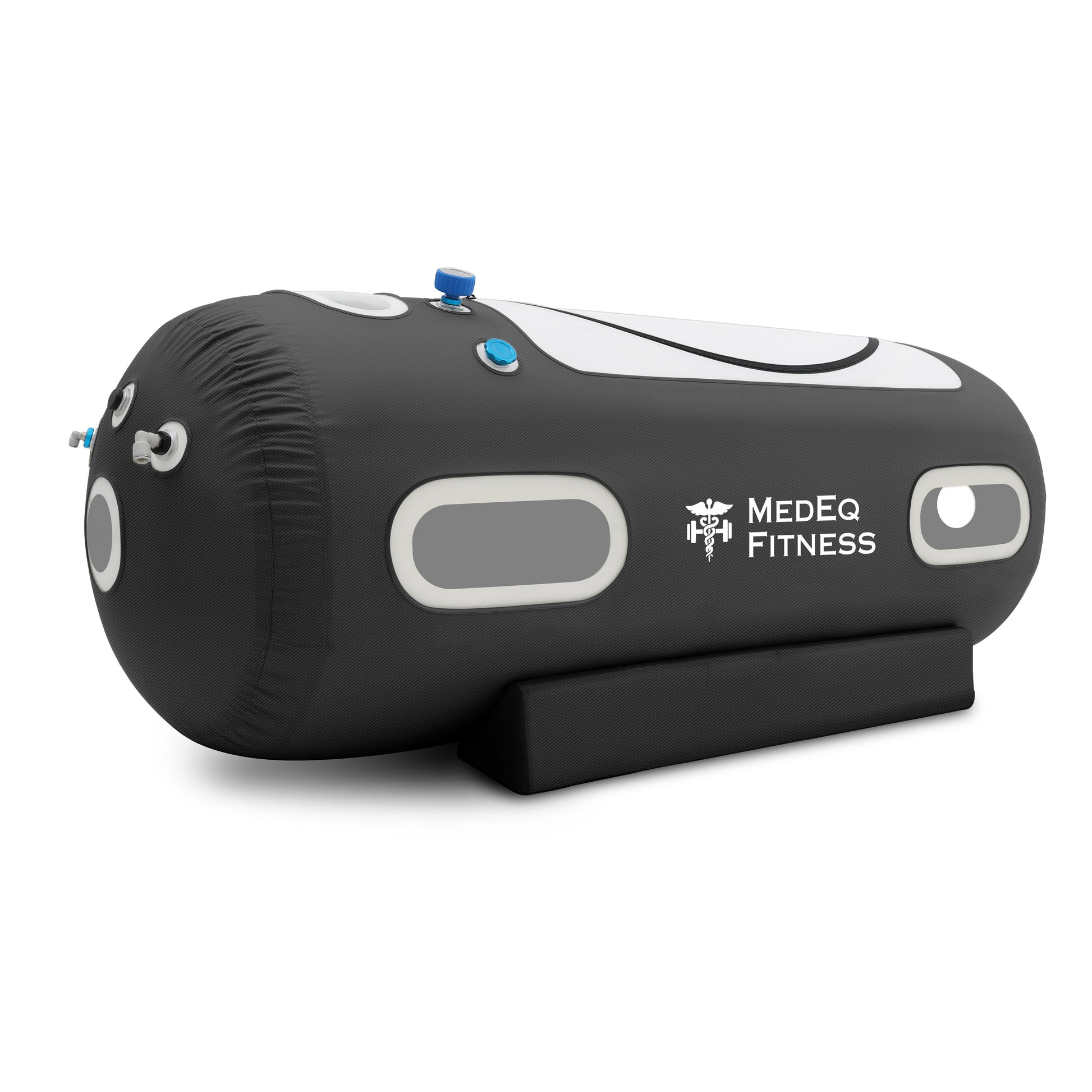

Custom Aesthetics & Accessories
Chamber available in white or blue, with six customizable cover colors. Optional accessories include internal/external frame, air cooler, static discharge mat, mattress, and pillows.
Chamber Specifications
| Spec | Detail |
|---|---|
| Chamber Type | Soft-shell lying-type hyperbaric chamber |
| Available Sizes | 80x200cm (32"x79"); 85x210cm (34"x83", +$500); 90x220cm (36"x87", +$1,000) |
| Operating Pressure | 1.3 ATA (≈4.5 PSI) / 1.5 ATA (≈7.2 PSI) |
| Material | 5-class TPU with high-frequency welded seams (non-toxic, non-polluting) |
| Windows | Overhead: 45x19cm (17.7"x7.5"); Side: ~15cm (5.9") wide, both sides |
| Voltage | AC 110V 60Hz / 220V 50Hz |
| Certifications | ISO 13485:2016, ICR CE H8U50250611 |
Oxygen Concentrator Specifications
| Spec | Detail |
|---|---|
| Unit Size | 35 x 25 x 67 cm (≈13.8" x 9.8" x 26.4") |
| Oxygen Flow Rate | 5 L/min |
| Air Flow Rate | 60 L/min |
| Oxygen Purity in Chamber | <30% inside the chamber (for safety under pressure) |
| Modes | HBOT mode (pressurized); Oxygen mode (non-pressurized) |
Standard Accessories
- 2x automatic pressure relief valves
- 1x manual pressure relief valve
- 3x oxygen/air inlet valves
- 2x 2m air columns
- 1x internal pressure gauge
- 1x external pressure gauge
- 1x sponge silencer
- 1x user manual
Optional Accessories
- Internal/external frame
- Air cooler
- Static discharge mat
- Mattress and pillows
Maintenance
| Frequency | Task |
|---|---|
| After Each Use | Wipe interior surfaces and accessories with a mild, non-abrasive disinfectant |
| Weekly | Inspect zippers, gauges, valves, air fittings, and hose connections for wear or leaks |
| Annually | Full system inspection and oxygen concentrator servicing per manufacturer guidelines |
Warranty
- Chamber material & zippers: 2 years
- Oxygen system & compressor: 1 year
- Remote & accessories: 1 year
Shipping Information
- Each TimeCapsule Air 1.5 unit is pressure tested prior to being packaged for shipment
- Standard shipping (sea freight): 20–30 days after pressure testing and packaging; customs delays can extend transit to 40–60 days
- Express shipping (air freight): 8–14 days after pressure testing and packaging; customs delays can extend transit to 20–30 days
- Tracking information is provided once the unit is sent to the freight office; tracking data gives an approximate location and may not update in real time
